DIODESDatasheet (PDF)

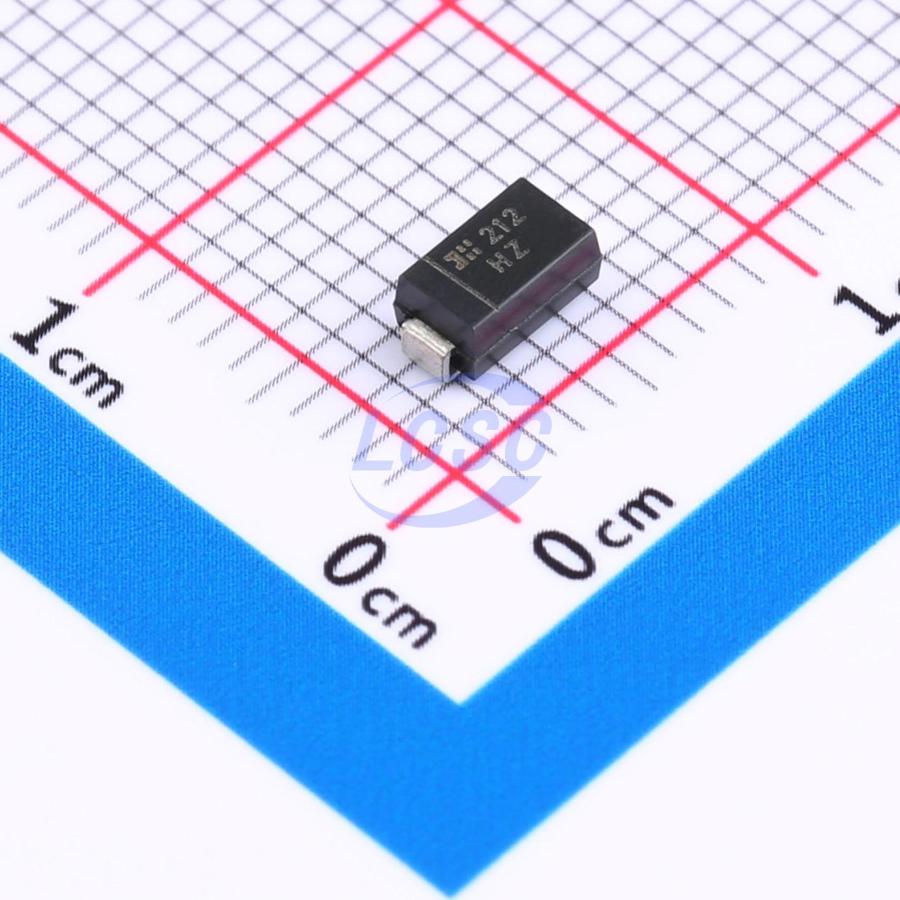

SMAJ11A-13-F
18.2VC Clamp 22A Ipp TVS DIODE SMA
SMAROHS3 CompliantActive
TVS DIODE 11VWM 18.2VC SMA
- Manufacturer
- DIODES
- Manufacturer part #
- SMAJ11A-13-F
- Store part #
- C134943
- Package / case
- SMA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
110 in stock
#C134943
Stock & price checked 20 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.95 | ₹89.75 |
| 50+ | ₹17.70 | ₹885.00 |
| 150+ | ₹17.53 | ₹2,629.50 |
| 500+ | ₹17.37 | ₹8,685.00 |
5 × ₹17.95
₹89.75
excl. GST
₹105.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ11A-13-F
₹89.75 for 5 + GST
Specifications
- Clamping Voltage
- 18.2V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 22A
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 13.5V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 11V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.304 g
