VISHAYDatasheet (PDF)

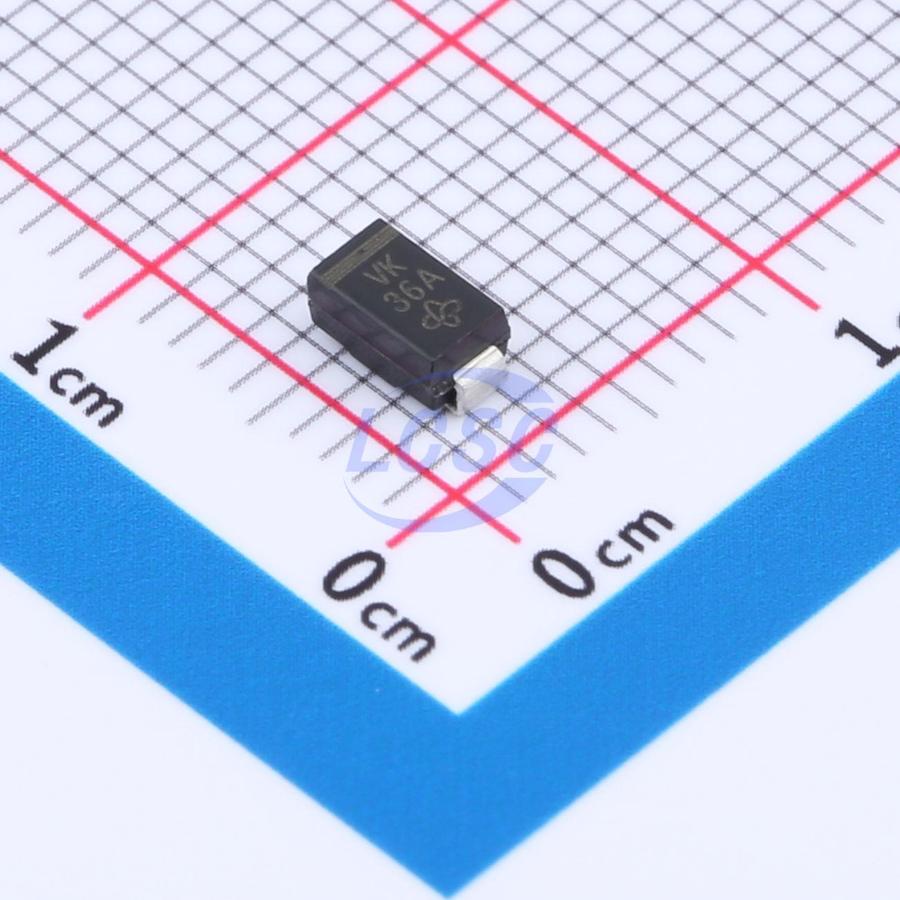

SMAJ130A-E3/61
209VC Clamp 1.4A Ipp TVS DIODE SMA(DO-214AC)
SMA(DO-214AC)ROHS3 CompliantActive
TVS DIODE 130VWM 209VC SMA(DO-214AC)
- Manufacturer
- VISHAY
- Manufacturer part #
- SMAJ130A-E3/61
- Store part #
- C1973580
- Package / case
- SMA(DO-214AC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,120 in stock
#C1973580
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.12 | ₹105.60 |
| 50+ | ₹16.66 | ₹833.00 |
| 150+ | ₹14.74 | ₹2,211.00 |
| 500+ | ₹12.36 | ₹6,180.00 |
| 1,800+ | ₹11.30 | ₹20,340.00 |
| 5,400+ | ₹10.65 | ₹57,510.00 |
5 × ₹21.12
₹105.60
excl. GST
₹124.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
SMAJ130A-E3/61
₹105.60 for 5 + GST
Specifications
- Clamping Voltage
- 209V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 1.4A
- Peak Pulse Power Dissipation (Ppp)
- 400W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 147V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 130V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.113 g
