DIODESDatasheet (PDF)

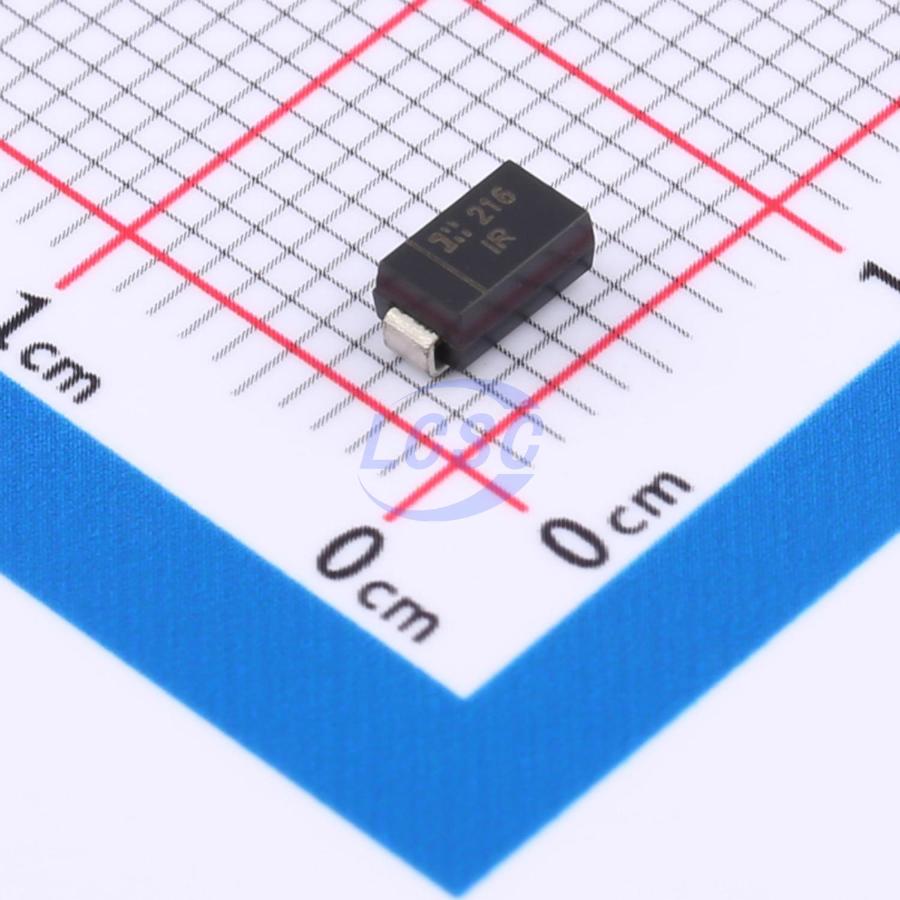

SMAJ17AQ-13-F
27.6VC Clamp 14.5A@10/1000us Ipp TVS DIODE SMA
SMAROHS3 CompliantActive
TVS DIODE 17VWM 27.6VC SMA
- Manufacturer
- DIODES
- Manufacturer part #
- SMAJ17AQ-13-F
- Store part #
- C1974477
- Package / case
- SMA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
75 in stock
#C1974477
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.96 | ₹144.80 |
| 50+ | ₹22.99 | ₹1,149.50 |
| 150+ | ₹20.44 | ₹3,066.00 |
| 500+ | ₹17.24 | ₹8,620.00 |
| 2,500+ | ₹15.82 | ₹39,550.00 |
| 5,000+ | ₹14.98 | ₹74,900.00 |
5 × ₹28.96
₹144.80
excl. GST
₹170.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ17AQ-13-F
₹144.80 for 5 + GST
Specifications
- Clamping Voltage
- 27.6V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 14.5A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 20.9V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 17V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.099 g
