VISHAYDatasheet (PDF)

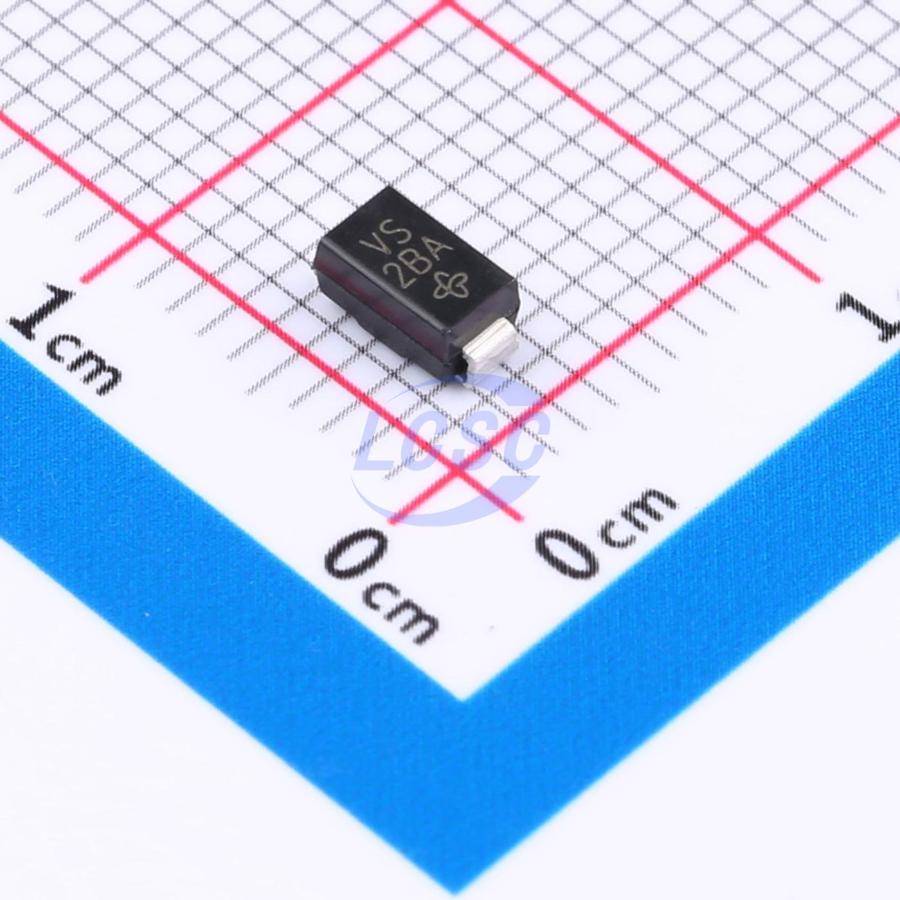

SMAJ188CAHE3_A/H
328VC Clamp 910mA Ipp TVS DIODE SMA(DO-214AC)
SMA(DO-214AC)ROHS3 CompliantActive
TVS DIODE 188VWM 328VC SMA(DO-214AC)
- Manufacturer
- VISHAY
- Manufacturer part #
- SMAJ188CAHE3_A/H
- Store part #
- C1979053
- Package / case
- SMA(DO-214AC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,545 in stock
#C1979053
Stock & price checked 37 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.30 | ₹141.50 |
| 50+ | ₹22.00 | ₹1,100.00 |
| 150+ | ₹19.30 | ₹2,895.00 |
| 500+ | ₹15.93 | ₹7,965.00 |
| 1,800+ | ₹14.43 | ₹25,974.00 |
| 5,400+ | ₹13.53 | ₹73,062.00 |
5 × ₹28.30
₹141.50
excl. GST
₹166.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
SMAJ188CAHE3_A/H
₹141.50 for 5 + GST
Specifications
- Clamping Voltage
- 328V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 910mA
- Peak Pulse Power Dissipation (Ppp)
- 300W
- Number of Channels
- 1
- Voltage - Breakdown
- 209V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 188V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.122 g
