LittelfuseDatasheet (PDF)

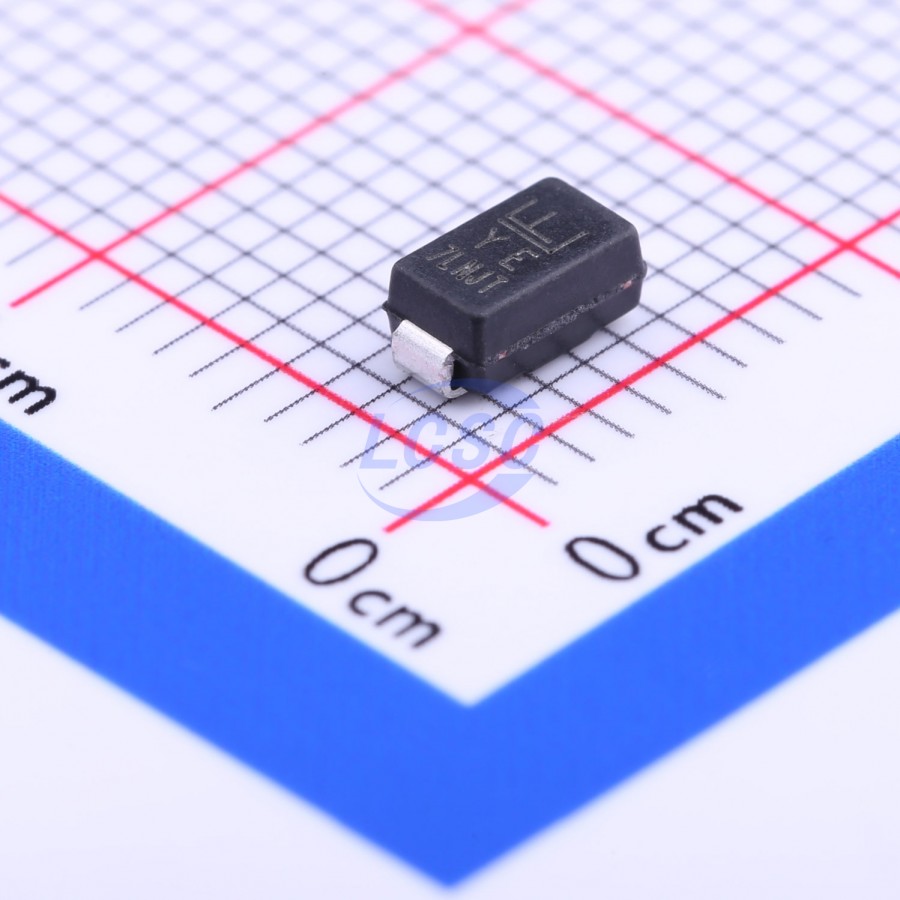

SMAJ26CA
42.1VC Clamp 9.5A@10/1000us Ipp TVS DIODE DO-214AC(SMA)
DO-214AC(SMA)ROHS3 CompliantActive
TVS DIODE 26VWM 42.1VC DO-214AC(SMA)
- Manufacturer
- Littelfuse
- Manufacturer part #
- SMAJ26CA
- Store part #
- C148226
- Package / case
- DO-214AC(SMA)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20,815 in stock
#C148226
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.83 | ₹64.15 |
| 50+ | ₹10.25 | ₹512.50 |
| 150+ | ₹8.97 | ₹1,345.50 |
| 500+ | ₹8.01 | ₹4,005.00 |
| 2,500+ | ₹6.96 | ₹17,400.00 |
| 5,000+ | ₹6.58 | ₹32,900.00 |
5 × ₹12.83
₹64.15
excl. GST
₹75.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ26CA
₹64.15 for 5 + GST
Specifications
- Clamping Voltage
- 42.1V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 9.5A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 400W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 31.9V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 26V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.124 g
