VISHAYDatasheet (PDF)

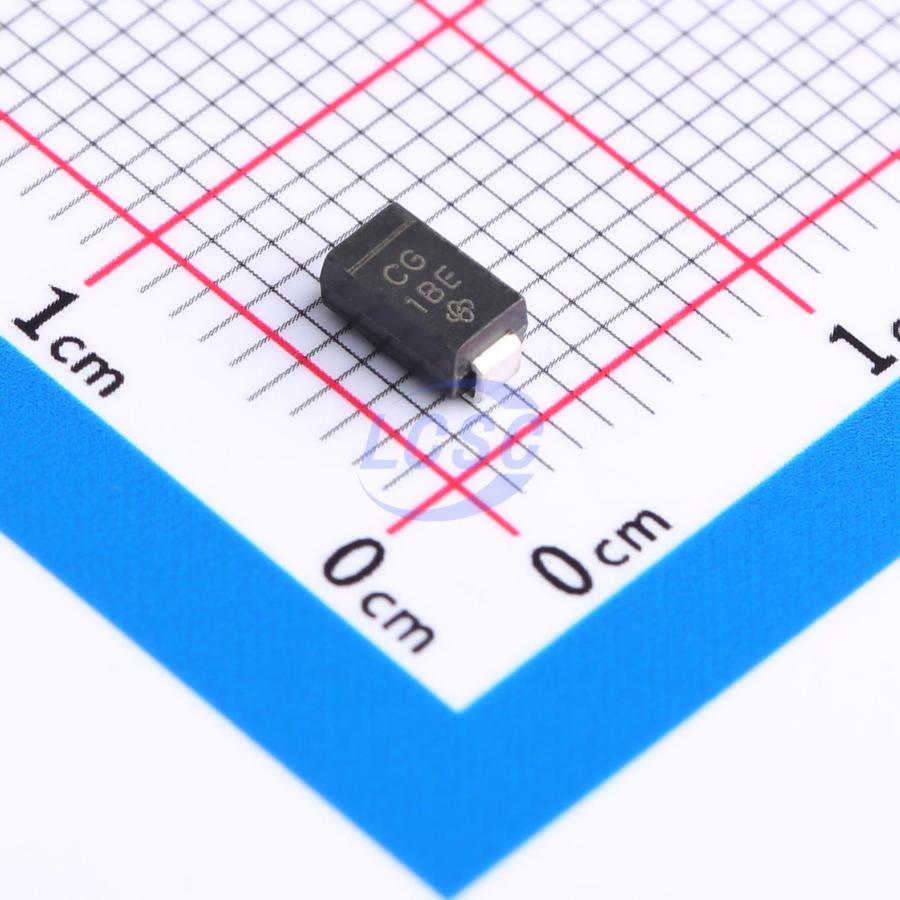

SMAJ28A-E3/5A
45.4VC Clamp 8.8A Ipp TVS DIODE SMA(DO-214AC)
SMA(DO-214AC)ROHS3 CompliantActive
TVS DIODE 28VWM 45.4VC SMA(DO-214AC)
- Manufacturer
- VISHAY
- Manufacturer part #
- SMAJ28A-E3/5A
- Store part #
- C1975235
- Package / case
- SMA(DO-214AC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,015 in stock
#C1975235
Stock & price checked 37 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.68 | ₹113.40 |
| 50+ | ₹17.79 | ₹889.50 |
| 150+ | ₹15.70 | ₹2,355.00 |
| 500+ | ₹12.52 | ₹6,260.00 |
| 2,500+ | ₹11.35 | ₹28,375.00 |
| 7,500+ | ₹10.65 | ₹79,875.00 |
5 × ₹22.68
₹113.40
excl. GST
₹133.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 7,500 per reel
SMAJ28A-E3/5A
₹113.40 for 5 + GST
Specifications
- Clamping Voltage
- 45.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 8.8A
- Peak Pulse Power Dissipation (Ppp)
- 400W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 34.4V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 28V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 7,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.13 g
