VISHAYDatasheet (PDF)

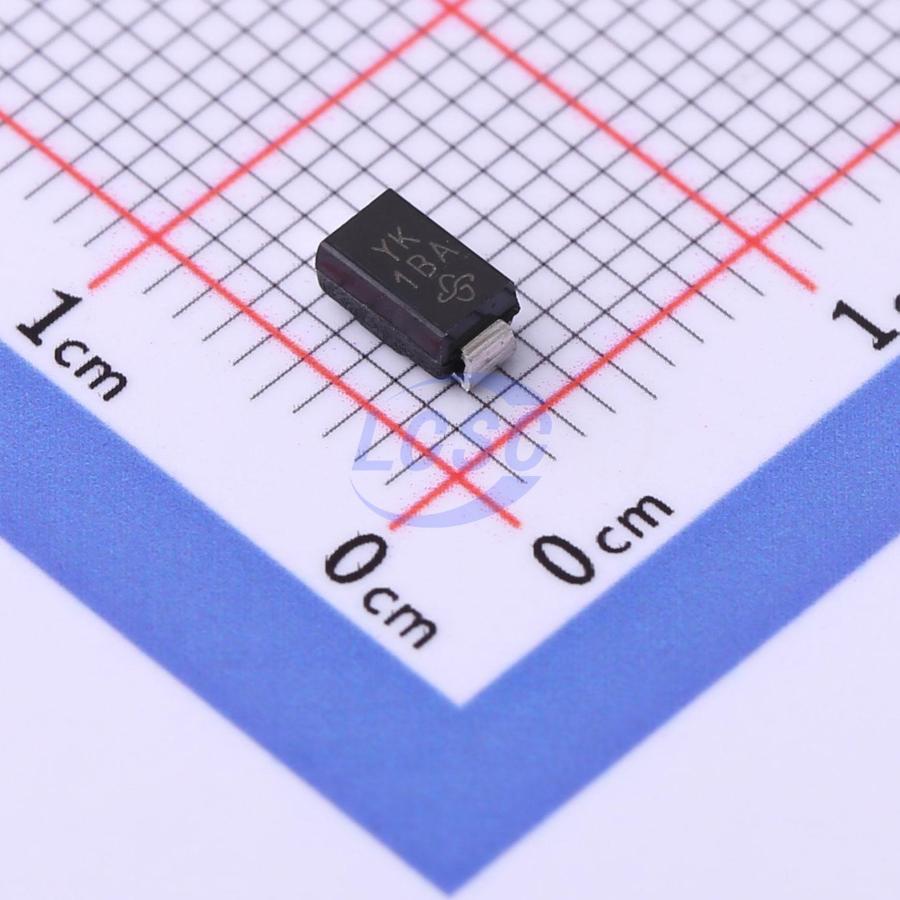

SMAJ30CAHE3_A/I
48.4VC Clamp 8.3A Ipp TVS DIODE SMA(DO-214AC)
SMA(DO-214AC)ROHS3 CompliantActive
TVS DIODE 30VWM 48.4VC SMA(DO-214AC)
- Manufacturer
- VISHAY
- Manufacturer part #
- SMAJ30CAHE3_A/I
- Store part #
- C1978972
- Package / case
- SMA(DO-214AC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,140 in stock
#C1978972
Stock & price checked 47 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.33 | ₹141.65 |
| 50+ | ₹24.50 | ₹1,225.00 |
| 150+ | ₹22.86 | ₹3,429.00 |
| 500+ | ₹20.81 | ₹10,405.00 |
| 2,500+ | ₹19.90 | ₹49,750.00 |
| 7,500+ | ₹19.36 | ₹1,45,200.00 |
5 × ₹28.33
₹141.65
excl. GST
₹167.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 7,500 per reel
SMAJ30CAHE3_A/I
₹141.65 for 5 + GST
Specifications
- Clamping Voltage
- 48.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 8.3A
- Peak Pulse Power Dissipation (Ppp)
- 400W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 36.8V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 30V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 7,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.082 g
