BOURNSDatasheet (PDF)

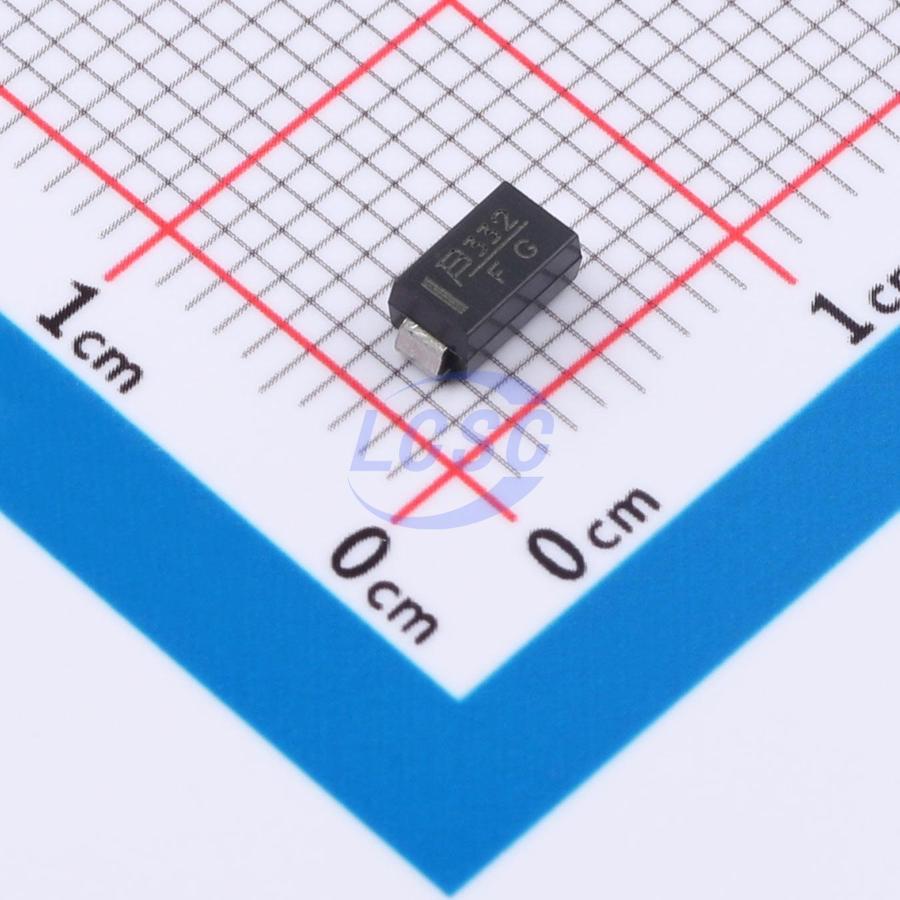

SMAJ350A
567VC Clamp 700mA Ipp TVS DIODE DO-214AC(SMA)
DO-214AC(SMA)ROHS3 CompliantActive
- Manufacturer
- BOURNS
- Manufacturer part #
- SMAJ350A
- Store part #
- C3720076
- Package / case
- DO-214AC(SMA)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90 in stock
#C3720076
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹66.72 | ₹66.72 |
| 10+ | ₹65.20 | ₹652.00 |
| 30+ | ₹64.13 | ₹1,923.90 |
| 100+ | ₹63.04 | ₹6,304.00 |
1 × ₹66.72
₹66.72
excl. GST
₹78.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ350A
₹66.72 for 1 + GST
Specifications
- Clamping Voltage
- 567V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 700mA
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 391V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 350V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.13 g
