LittelfuseDatasheet (PDF)

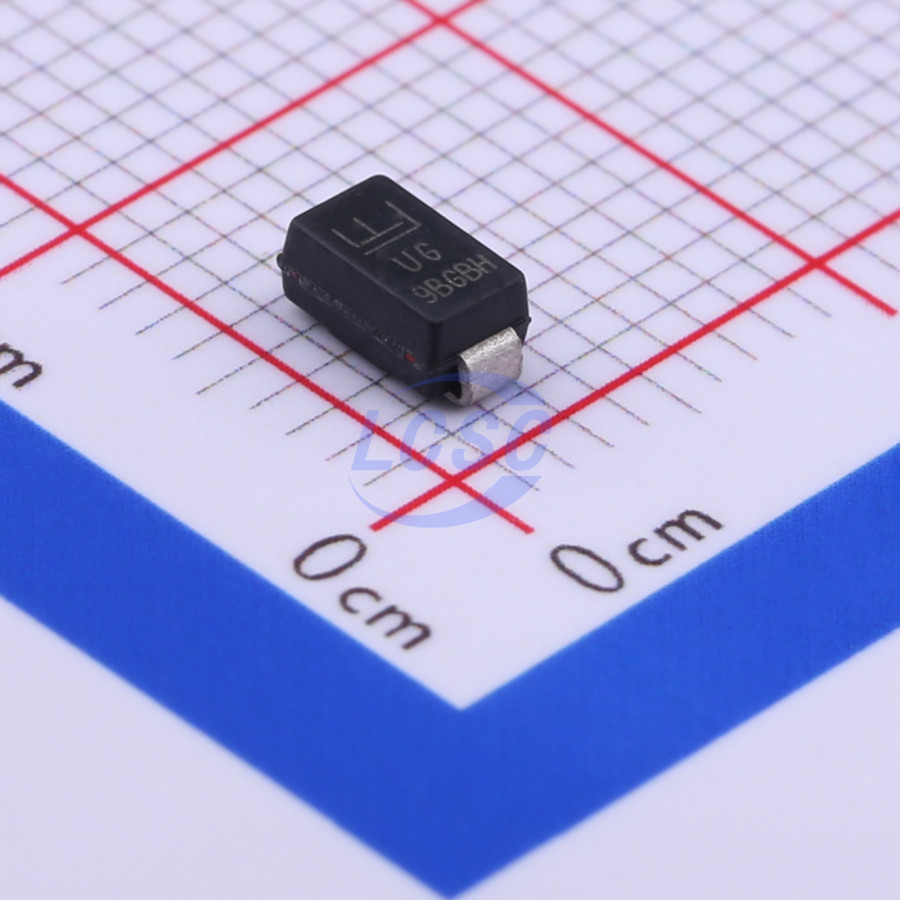

SMAJ350CA
567VC Clamp 700mA Ipp TVS DIODE SMA(DO-214AC)
SMA(DO-214AC)ROHS3 CompliantActive
- Manufacturer
- Littelfuse
- Manufacturer part #
- SMAJ350CA
- Store part #
- C374025
- Package / case
- SMA(DO-214AC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
875 in stock
#C374025
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.67 | ₹148.35 |
| 50+ | ₹24.12 | ₹1,206.00 |
| 150+ | ₹21.74 | ₹3,261.00 |
| 500+ | ₹18.76 | ₹9,380.00 |
5 × ₹29.67
₹148.35
excl. GST
₹175.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ350CA
₹148.35 for 5 + GST
Specifications
- Clamping Voltage
- 567V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 700mA
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 391V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 350V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.113 g
