YintDatasheet (PDF)

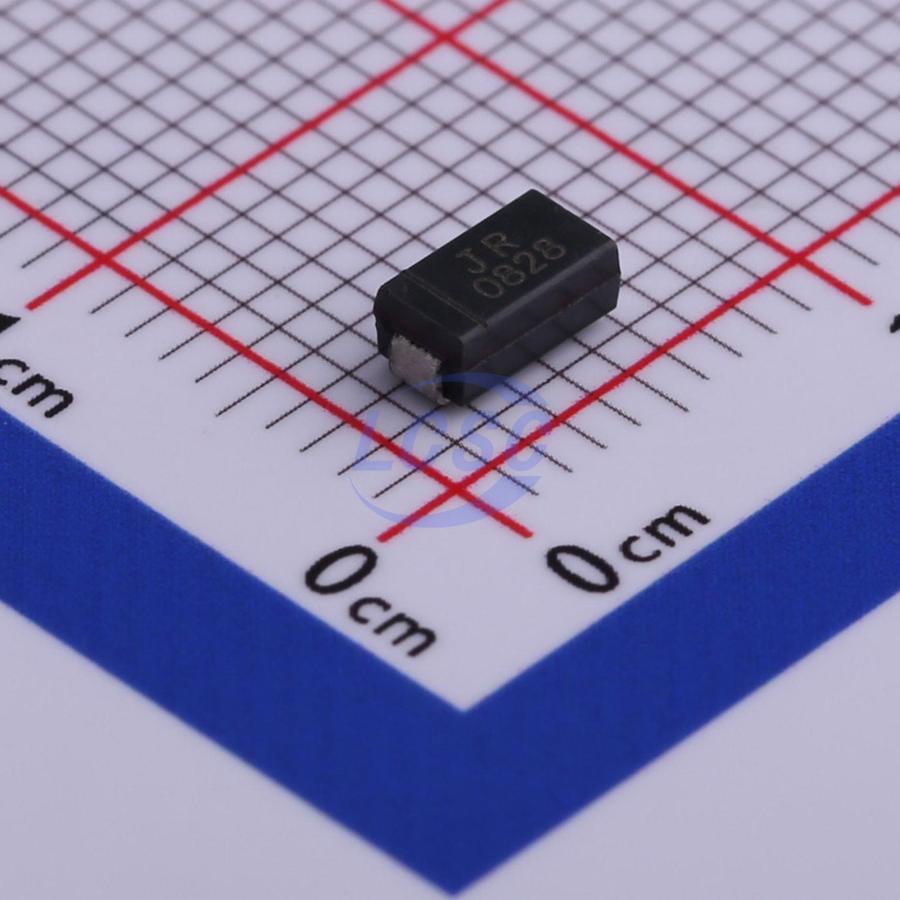

SMAJ40A
64.5VC Clamp 6.2A Ipp TVS DIODE DO-214AC(SMA)
DO-214AC(SMA)ROHS CompliantSold out at source
TVS DIODE 40VWM 64.5VC DO-214AC(SMA)
- Manufacturer
- Yint
- Manufacturer part #
- SMAJ40A
- Store part #
- C484338
- Package / case
- DO-214AC(SMA)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C484338
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.61 | ₹76.10 |
| 100+ | ₹5.89 | ₹589.00 |
| 300+ | ₹5.03 | ₹1,509.00 |
| 1,000+ | ₹4.38 | ₹4,380.00 |
| 5,000+ | ₹3.86 | ₹19,300.00 |
| 10,000+ | ₹3.60 | ₹36,000.00 |
10 × ₹7.61
₹76.10
excl. GST
₹89.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ40A
₹76.10 for 10 + GST
Specifications
- Clamping Voltage
- 64.5V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 6.2A
- Peak Pulse Power Dissipation (Ppp)
- 400W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 44.4V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 40V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Sold out at source
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.102 g
