DIODESDatasheet (PDF)

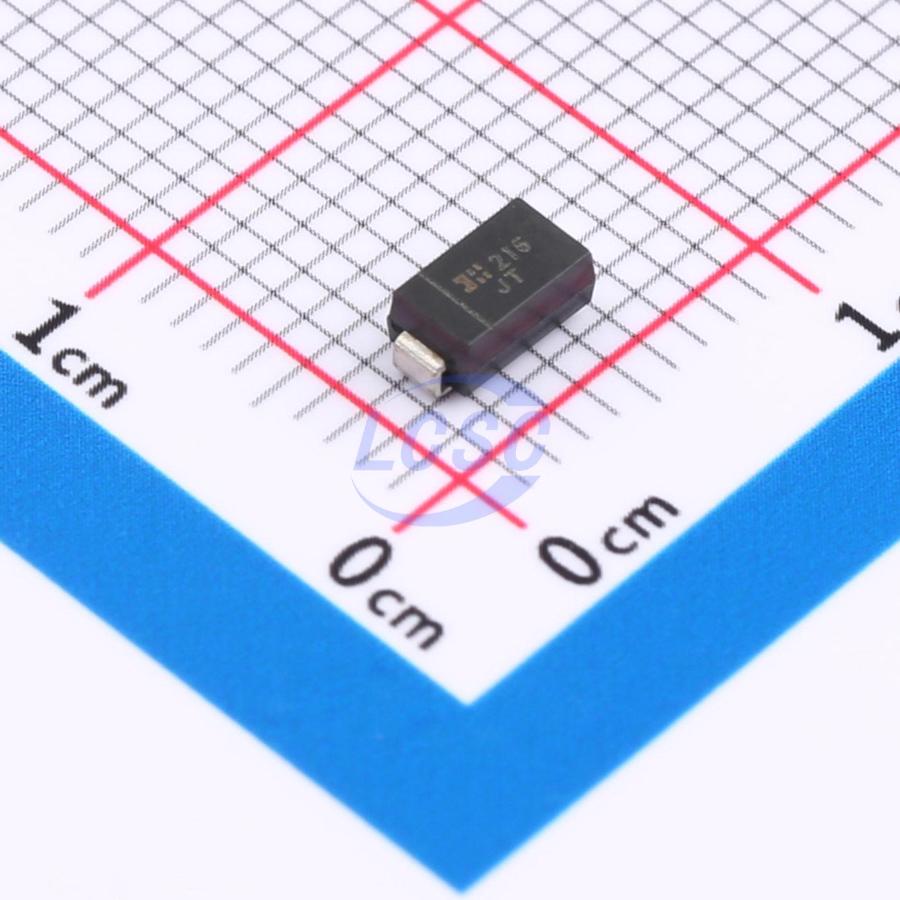

SMAJ43AQ-13-F
69.4VC Clamp 5.7A Ipp TVS DIODE SMA
SMAROHS3 CompliantActive
TVS DIODE 43VWM 69.4VC SMA
- Manufacturer
- DIODES
- Manufacturer part #
- SMAJ43AQ-13-F
- Store part #
- C5249225
- Package / case
- SMA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
85 in stock
#C5249225
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.03 | ₹75.15 |
| 50+ | ₹14.71 | ₹735.50 |
| 200+ | ₹14.50 | ₹2,900.00 |
| 500+ | ₹14.29 | ₹7,145.00 |
5 × ₹15.03
₹75.15
excl. GST
₹88.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 100 per reel
SMAJ43AQ-13-F
₹75.15 for 5 + GST
Specifications
- Clamping Voltage
- 69.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 5.7A
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 52.8V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 43V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 100 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.097 g
