VISHAYDatasheet (PDF)

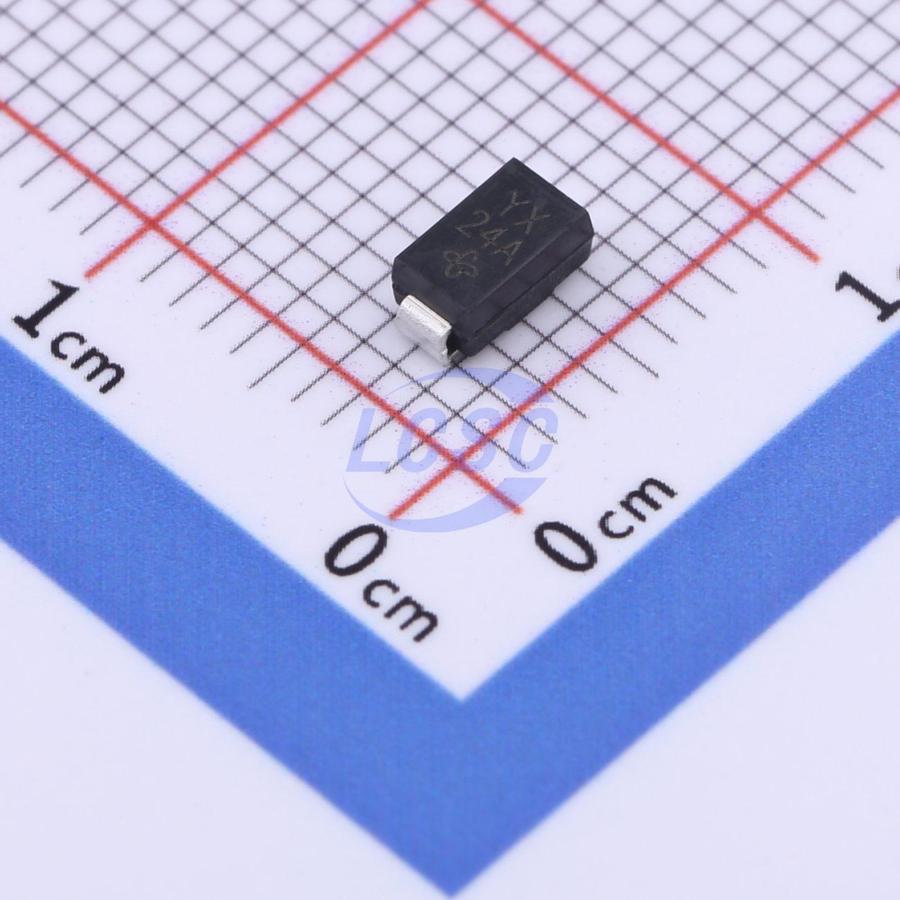

SMAJ48CA-E3/61
77.4VC Clamp 5.2A Ipp TVS DIODE SMA(DO-214AC)
SMA(DO-214AC)ROHS3 CompliantActive
TVS DIODE 48VWM 77.4VC SMA(DO-214AC)
- Manufacturer
- VISHAY
- Manufacturer part #
- SMAJ48CA-E3/61
- Store part #
- C1973118
- Package / case
- SMA(DO-214AC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,590 in stock
#C1973118
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.04 | ₹95.20 |
| 50+ | ₹15.23 | ₹761.50 |
| 150+ | ₹13.32 | ₹1,998.00 |
| 500+ | ₹11.89 | ₹5,945.00 |
| 1,800+ | ₹10.76 | ₹19,368.00 |
| 5,400+ | ₹10.19 | ₹55,026.00 |
5 × ₹19.04
₹95.20
excl. GST
₹112.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
SMAJ48CA-E3/61
₹95.20 for 5 + GST
Specifications
- Clamping Voltage
- 77.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 5.2A
- Peak Pulse Power Dissipation (Ppp)
- 400W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 58.9V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 48V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.17 g
