VISHAYDatasheet (PDF)

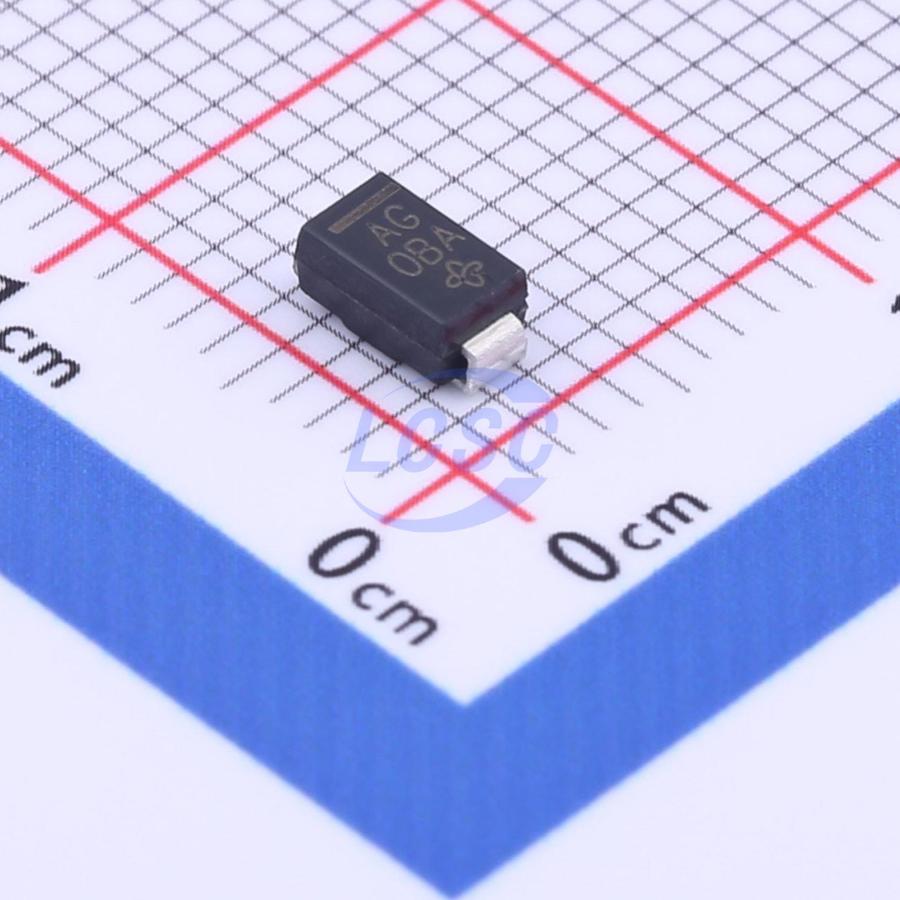

SMAJ6.0A-E3/61
10.3VC Clamp 38.8A Ipp TVS DIODE SMA(DO-214AC)
SMA(DO-214AC)ROHS3 CompliantActive
TVS DIODE 6VWM 10.3VC SMA(DO-214AC)
- Manufacturer
- VISHAY
- Manufacturer part #
- SMAJ6.0A-E3/61
- Store part #
- C553972
- Package / case
- SMA(DO-214AC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,200 in stock
#C553972
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.16 | ₹75.80 |
| 50+ | ₹12.13 | ₹606.50 |
| 150+ | ₹10.61 | ₹1,591.50 |
| 500+ | ₹9.47 | ₹4,735.00 |
| 1,800+ | ₹8.57 | ₹15,426.00 |
| 5,400+ | ₹8.11 | ₹43,794.00 |
5 × ₹15.16
₹75.80
excl. GST
₹89.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
SMAJ6.0A-E3/61
₹75.80 for 5 + GST
Specifications
- Clamping Voltage
- 10.3V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 38.8A
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 6.67V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 800uA
- Reverse Stand-Off Voltage (Vrwm)
- 6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.116 g
