PDW

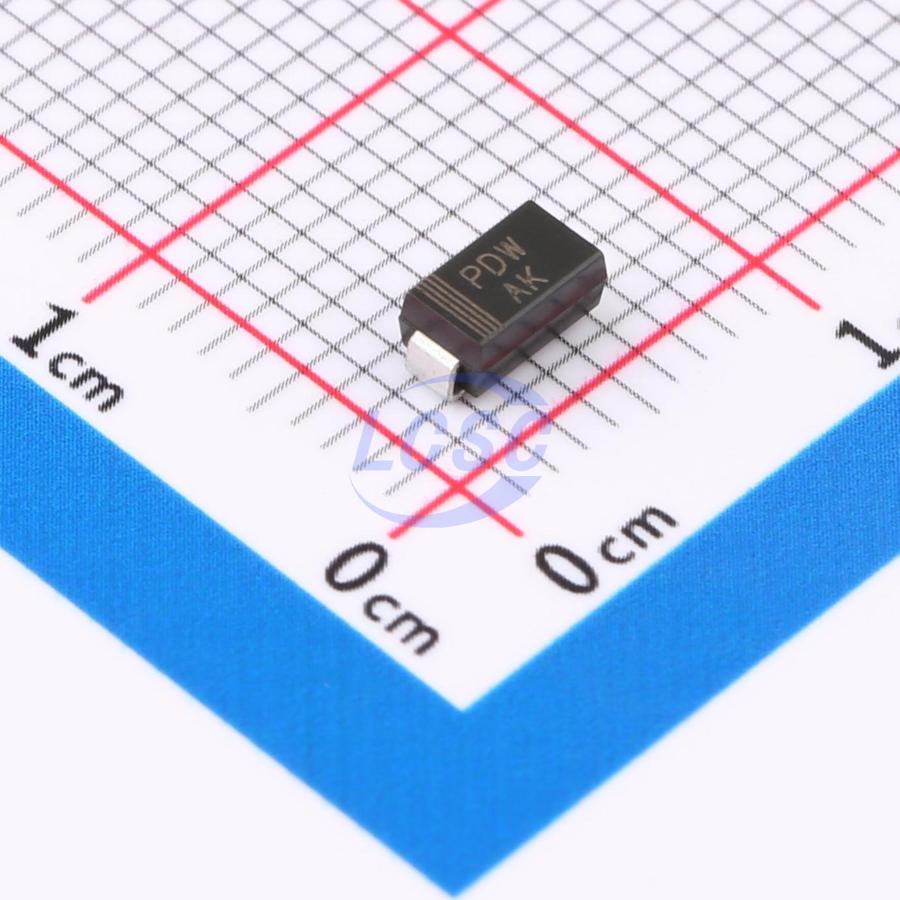

SMAJ6.5A

11.2V 35.7A 400W@10/1000us 7.98V Unidirectional 6.5V SMA TVS Diodes

SMARoHSActive

TVS DIODE 6.5VWM 11.2VC SMA

Manufacturer: PDW
Manufacturer part #: SMAJ6.5A
Store part #: C49242886
Package / case: SMA
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10,120 in stock

#C49242886

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
20+	₹3.18	₹63.60
200+	₹2.47	₹494.00
600+	₹2.09	₹1,254.00
5,000+	₹1.85	₹9,250.00
10,000+	₹1.65	₹16,500.00
20,000+	₹1.55	₹31,000.00

Quantity (min 20, multiples of 20)

20 × ₹3.18

₹63.60

excl. GST

₹75.05 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 5,000 per reel

SMAJ6.5A

₹63.60 for 20 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 11.2V
Operating Temperature: -55℃~+150℃
Peak Pulse Current (Ipp): 35.7A
Peak Pulse Power Dissipation (Ppp): 400W@10/1000us
Number of Channels: 1
Voltage - Breakdown: 7.98V
type: TVS
Polarity: Unidirectional
Reverse Leakage Current (Ir): 500uA
Reverse Stand-Off Voltage (Vrwm): 6.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.118 g

Overview

SMAJ series transient voltage suppressors are excellent overvoltage protection devices. This series is specifically designed to protect sensitive electronic equipment from voltage transients caused by lightning strikes and other transient voltage events.

Applications

Telecommunications
Computers
Industrial Electronics
Consumer Electronics

Key features

Excellent clamping capability
Low leakage current
High surge capability
Glass passivated die
Epoxy encapsulation
Built-in strain relief structure
Fatigue-free
RoHS compliant
Fast response time: 0V to minimum breakdown voltage (VBR min) typically less than 1.0 ps
