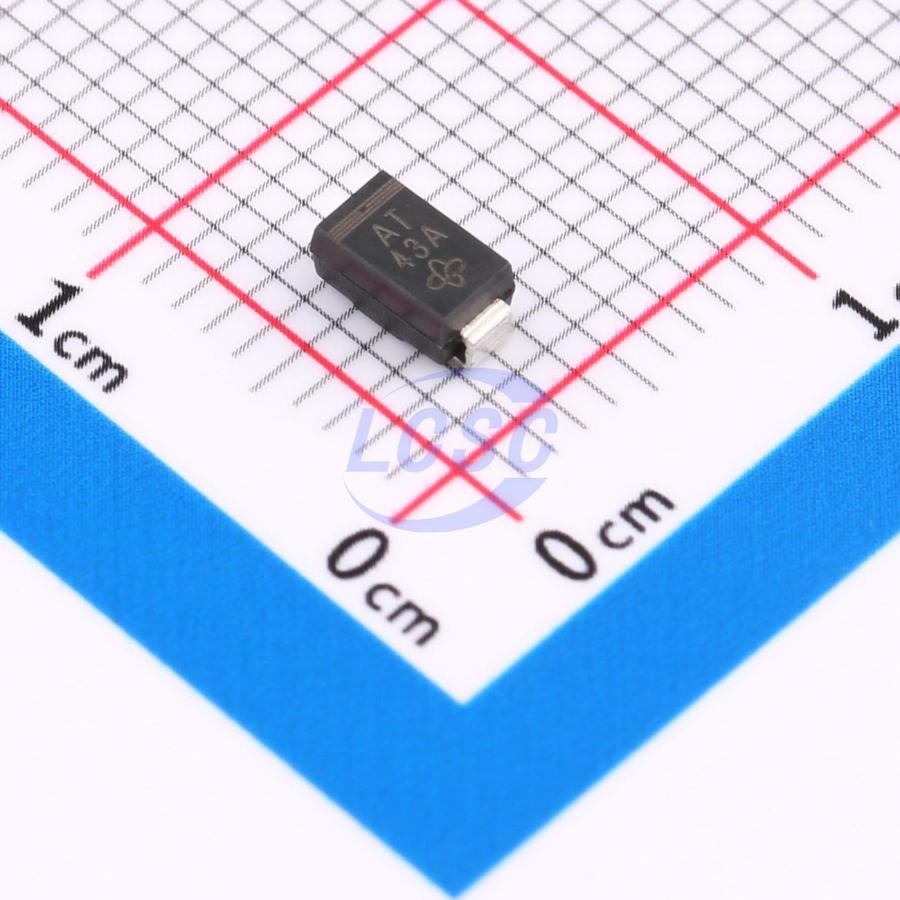

VISHAYDatasheet (PDF)
SMAJ8.5A-E3/61
14.4VC Clamp 27.8A Ipp TVS DIODE SMA(DO-214AC)
SMA(DO-214AC)ROHS3 CompliantActive
TVS DIODE 8.5VWM 14.4VC SMA(DO-214AC)
- Manufacturer
- VISHAY
- Manufacturer part #
- SMAJ8.5A-E3/61
- Store part #
- C377876
- Package / case
- SMA(DO-214AC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,230 in stock
#C377876
Stock & price checked 39 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.96 | ₹119.80 |
| 50+ | ₹19.02 | ₹951.00 |
| 150+ | ₹16.91 | ₹2,536.50 |
| 500+ | ₹14.26 | ₹7,130.00 |
| 1,800+ | ₹13.08 | ₹23,544.00 |
| 5,400+ | ₹12.38 | ₹66,852.00 |
5 × ₹23.96
₹119.80
excl. GST
₹141.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
SMAJ8.5A-E3/61
₹119.80 for 5 + GST
Specifications
- Clamping Voltage
- 14.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 27.8A
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 9.44V
- type
- TVS
- Reverse Leakage Current (Ir)
- 10uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 8.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.158 g
