VISHAYDatasheet (PDF)

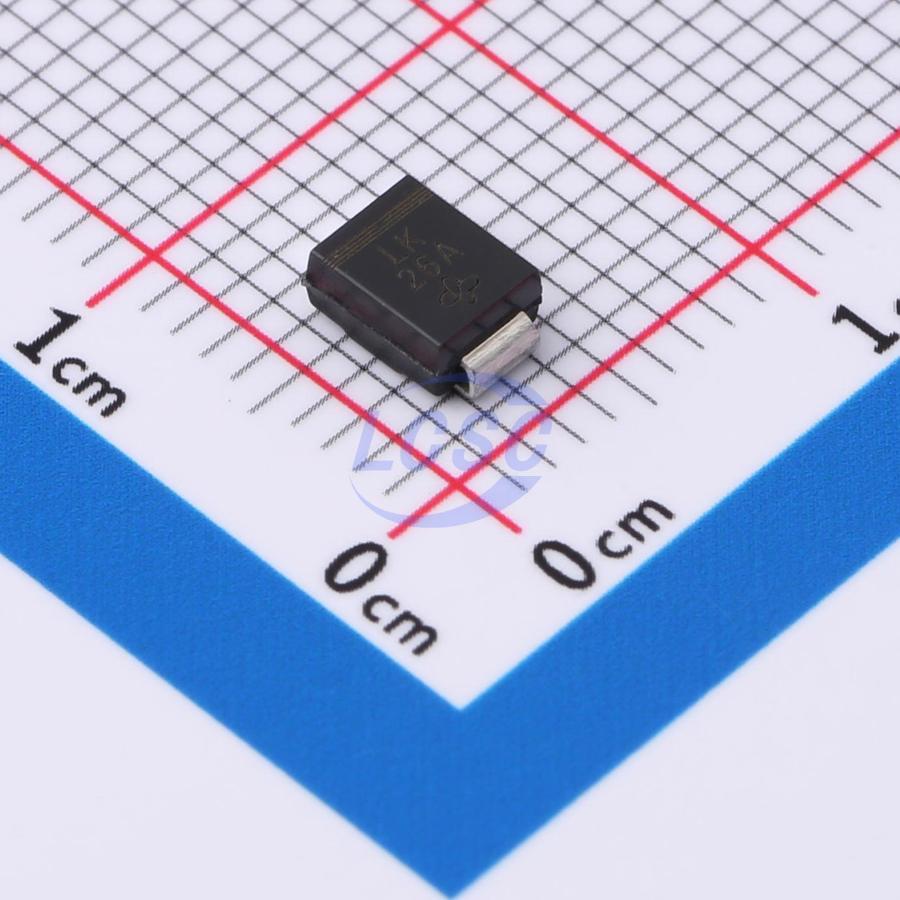

SMBJ14A-E3/52
23.2VC Clamp 25.9A Ipp TVS DIODE SMB(DO-214AA)
SMB(DO-214AA)ROHS3 CompliantActive
TVS DIODE 14VWM 23.2VC SMB(DO-214AA)
- Manufacturer
- VISHAY
- Manufacturer part #
- SMBJ14A-E3/52
- Store part #
- C3707134
- Package / case
- SMB(DO-214AA)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,665 in stock
#C3707134
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.20 | ₹101.00 |
| 50+ | ₹16.41 | ₹820.50 |
| 150+ | ₹14.51 | ₹2,176.50 |
| 750+ | ₹11.83 | ₹8,872.50 |
| 2,250+ | ₹10.70 | ₹24,075.00 |
| 5,250+ | ₹10.13 | ₹53,182.50 |
5 × ₹20.20
₹101.00
excl. GST
₹119.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 750 per reel
SMBJ14A-E3/52
₹101.00 for 5 + GST
Specifications
- Clamping Voltage
- 23.2V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 25.9A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 15.6V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 14V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 750 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.21 g
