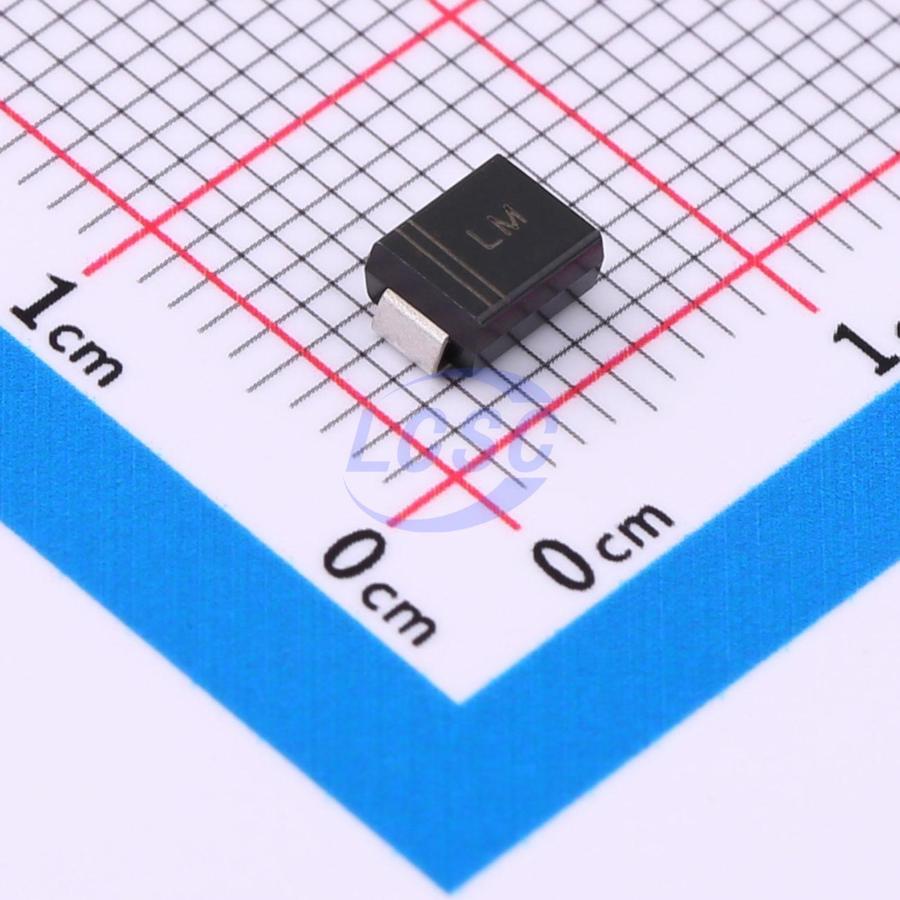

SMBJ15A
24.4VC Clamp 24.6A@10/1000us Ipp DO-214AA(SMB)
DO-214AA(SMB)RoHSActive
15VWM 24.4VC DO-214AA(SMB)
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SMBJ15A
- Store part #
- C42370523
- Package / case
- DO-214AA(SMB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,260 in stock
#C42370523
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.04 | ₹100.80 |
| 200+ | ₹4.00 | ₹800.00 |
| 600+ | ₹3.47 | ₹2,082.00 |
| 2,000+ | ₹3.08 | ₹6,160.00 |
| 10,000+ | ₹2.77 | ₹27,700.00 |
| 20,000+ | ₹2.61 | ₹52,200.00 |
20 × ₹5.04
₹100.80
excl. GST
₹118.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ15A
₹100.80 for 20 + GST
Specifications
- Clamping Voltage
- 24.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 24.6A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 18.5V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.194 g
Overview
Applications
- Personal digital assistants (PDA)
- Cellular handsets & Accessories
- Handhelds and notebooks
- Portable instrumentation
Key features
- Peak power disspation 600W@10×1000 us Pluse
- Low incremental surge resistance
- Excellent clamping capability
- Fast response time
- Low leakage current
- Halogen free and RoHS compliant
