HXY MOSFETDatasheet (PDF)

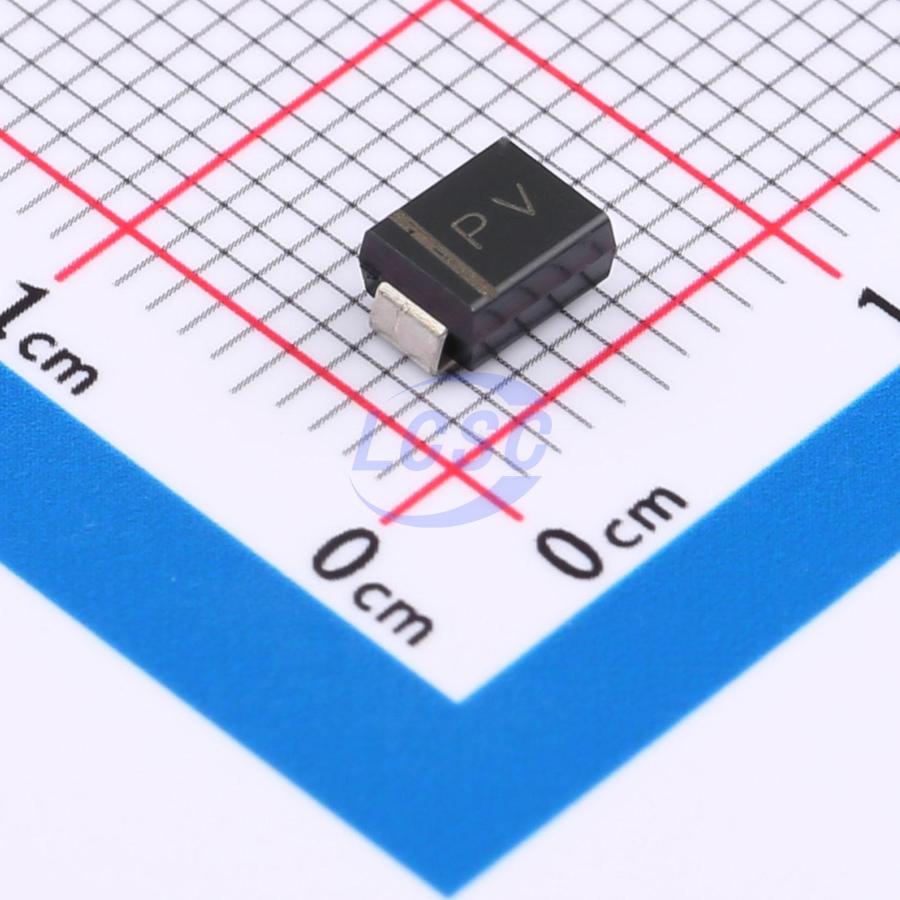

SMBJ200A
324VC Clamp 1.9A Ipp TVS DIODE SMB(DO-214AA)
SMB(DO-214AA)ROHS CompliantActive
TVS DIODE 200VWM 324VC SMB(DO-214AA)
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- SMBJ200A
- Store part #
- C7466442
- Package / case
- SMB(DO-214AA)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
260 in stock
#C7466442
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.53 | ₹110.60 |
| 200+ | ₹4.37 | ₹874.00 |
| 600+ | ₹3.73 | ₹2,238.00 |
| 3,000+ | ₹3.06 | ₹9,180.00 |
| 9,000+ | ₹2.73 | ₹24,570.00 |
| 21,000+ | ₹2.54 | ₹53,340.00 |
20 × ₹5.53
₹110.60
excl. GST
₹130.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ200A
₹110.60 for 20 + GST
Specifications
- Clamping Voltage
- 324V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 1.9A
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 224V;247V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 200V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.19 g
