VISHAYDatasheet (PDF)

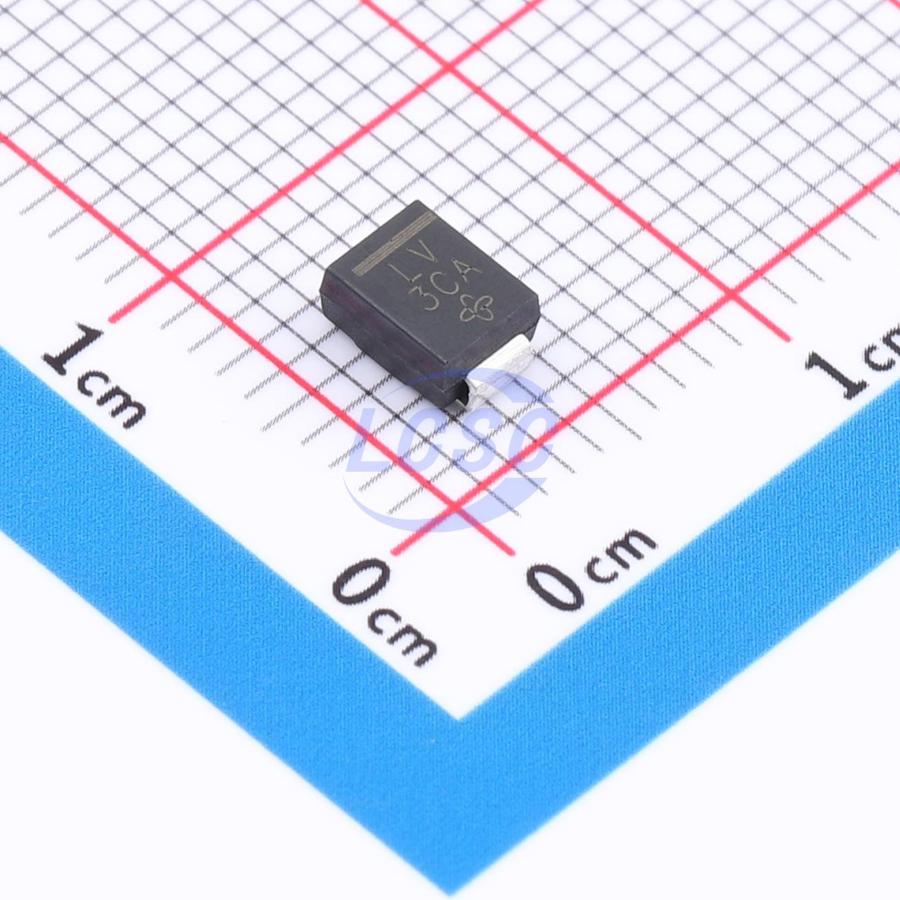

SMBJ20A-E3/52
32.4VC Clamp 18.5A@10/1000us Ipp TVS DIODE SMB(DO-214AA)
SMB(DO-214AA)ROHS3 CompliantActive
TVS DIODE 20VWM 32.4VC SMB(DO-214AA)
- Manufacturer
- VISHAY
- Manufacturer part #
- SMBJ20A-E3/52
- Store part #
- C1973207
- Package / case
- SMB(DO-214AA)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,155 in stock
#C1973207
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.16 | ₹95.80 |
| 50+ | ₹15.72 | ₹786.00 |
| 150+ | ₹14.00 | ₹2,100.00 |
| 750+ | ₹12.71 | ₹9,532.50 |
| 2,250+ | ₹11.68 | ₹26,280.00 |
| 5,250+ | ₹11.17 | ₹58,642.50 |
5 × ₹19.16
₹95.80
excl. GST
₹113.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 750 per reel
SMBJ20A-E3/52
₹95.80 for 5 + GST
Specifications
- Clamping Voltage
- 32.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 18.5A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 24.5V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 20V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 750 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.001 g
