LittelfuseDatasheet (PDF)

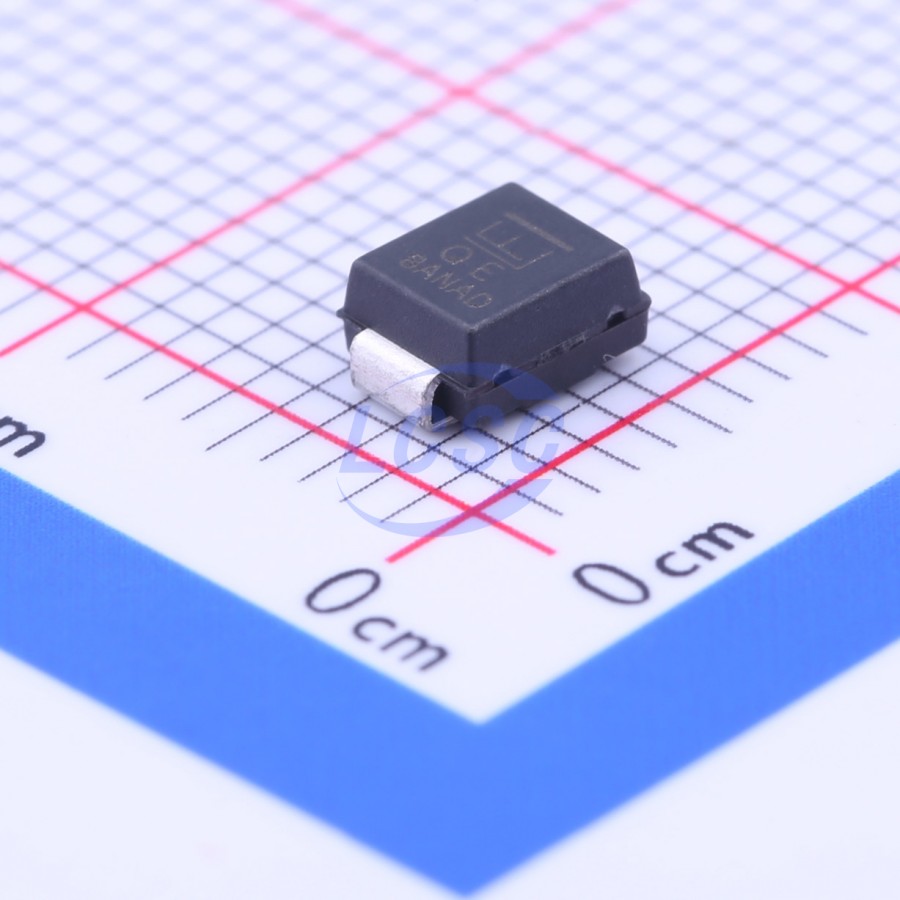

SMBJ300A
486VC Clamp 1.3A@10/1000us Ipp TVS DIODE DO-214AA
DO-214AAROHS3 CompliantActive
TVS DIODE 300VWM 486VC DO-214AA
- Manufacturer
- Littelfuse
- Manufacturer part #
- SMBJ300A
- Store part #
- C151260
- Package / case
- DO-214AA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
620 in stock
#C151260
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.59 | ₹182.95 |
| 50+ | ₹29.71 | ₹1,485.50 |
| 150+ | ₹26.76 | ₹4,014.00 |
| 500+ | ₹23.09 | ₹11,545.00 |
| 3,000+ | ₹18.72 | ₹56,160.00 |
| 6,000+ | ₹17.74 | ₹1,06,440.00 |
5 × ₹36.59
₹182.95
excl. GST
₹215.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ300A
₹182.95 for 5 + GST
Specifications
- Clamping Voltage
- 486V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 1.3A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 371V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 300V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.202 g
