YintDatasheet (PDF)

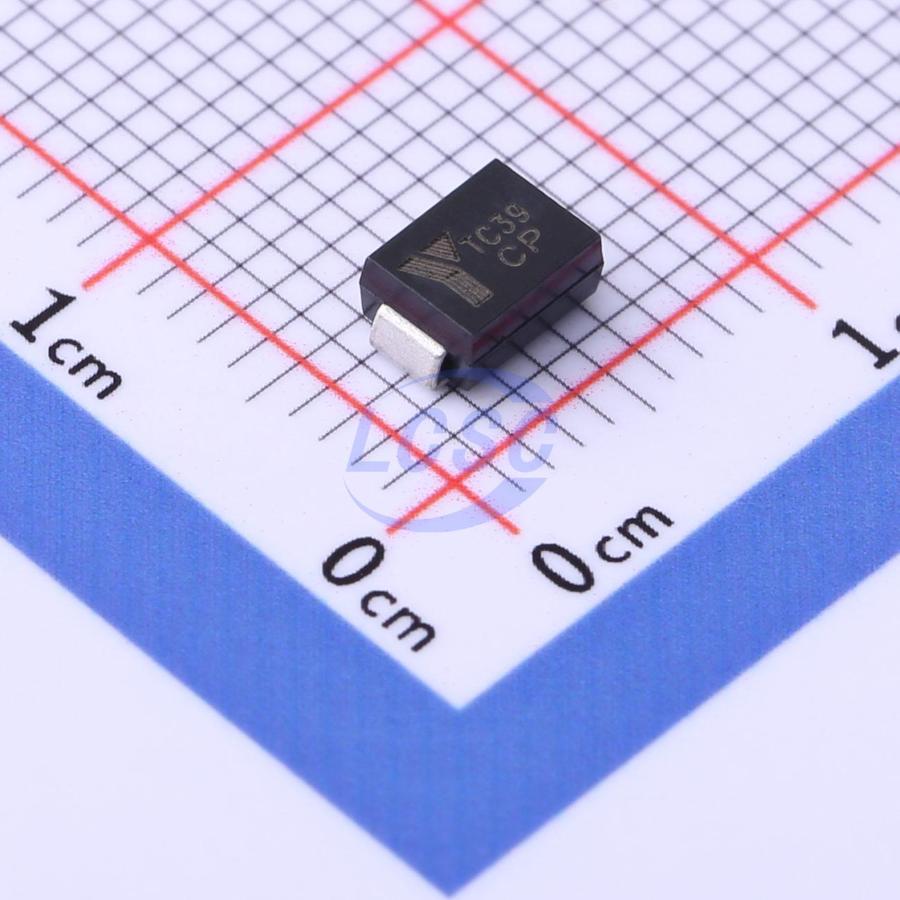

SMBJ36CA
58.1VC Clamp 10.4A Ipp TVS DIODE DO-214AA(SMB)
DO-214AA(SMB)ROHS CompliantSold out at source
TVS DIODE 36VWM 58.1VC DO-214AA(SMB)
- Manufacturer
- Yint
- Manufacturer part #
- SMBJ36CA
- Store part #
- C2920015
- Package / case
- DO-214AA(SMB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C2920015
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.88 | ₹78.80 |
| 100+ | ₹6.26 | ₹626.00 |
| 300+ | ₹5.45 | ₹1,635.00 |
| 2,500+ | ₹4.70 | ₹11,750.00 |
| 5,000+ | ₹4.21 | ₹21,050.00 |
| 10,000+ | ₹3.97 | ₹39,700.00 |
10 × ₹7.88
₹78.80
excl. GST
₹92.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SMBJ36CA
₹78.80 for 10 + GST
Specifications
- Clamping Voltage
- 58.1V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 10.4A
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 40V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 36V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Sold out at source
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.217 g
