TECH PUBLICDatasheet (PDF)

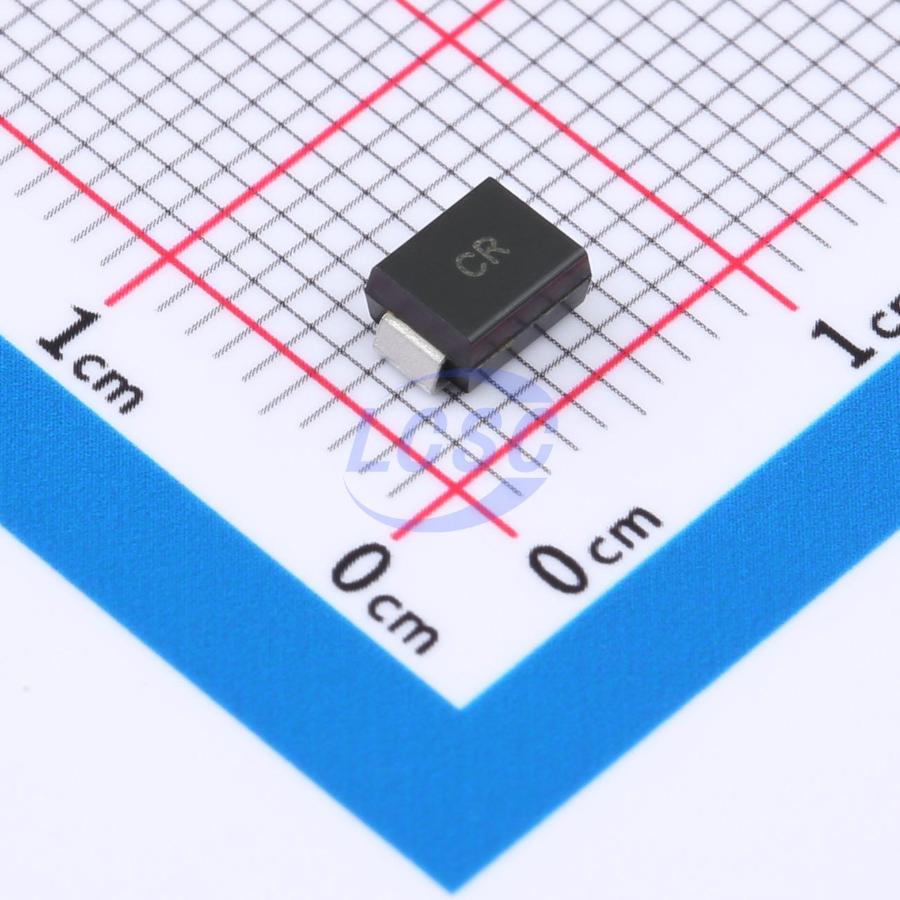

SMBJ40CA
64.5VC Clamp 9.3A@10/1000us Ipp TVS DIODE DO-214AA(SMB)
DO-214AA(SMB)RoHSActive
TVS DIODE 40VWM 64.5VC DO-214AA(SMB)
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SMBJ40CA
- Store part #
- C42440473
- Package / case
- DO-214AA(SMB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,660 in stock
#C42440473
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.91 | ₹59.10 |
| 100+ | ₹4.78 | ₹478.00 |
| 300+ | ₹4.19 | ₹1,257.00 |
| 3,000+ | ₹3.77 | ₹11,310.00 |
| 6,000+ | ₹3.43 | ₹20,580.00 |
| 9,000+ | ₹3.25 | ₹29,250.00 |
10 × ₹5.91
₹59.10
excl. GST
₹69.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ40CA
₹59.10 for 10 + GST
Specifications
- Clamping Voltage
- 64.5V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 9.3A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 49.1V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 40V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.191 g
Overview
Applications
- Personal digital assistants (PDA)
- Cellular handsets & Accessories
- Handhelds and notebooks
- Portable instrumentation
Key features
- Peak power disspation: 600W@10×1000 us Pluse
- Low incremental surge resistance
- Excellent clamping capability
- Fast response time
- Low leakage current
- Halogen free and RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPSMBJ40CA#C42440508TECH PUBLIC · DO-214AA(SMB) | TECH PUBLIC | DO-214AA(SMB) | 3,000 | ₹6.84 · 3,000 in stock | View |
 | SMBJ43CA#C53278496TECH PUBLIC · SMB | TECH PUBLIC | SMB | 4,690 | ₹5.85 · 4,690 in stock | View |
 | SMBJ36CA#C41425634TECH PUBLIC · DO-214AA(SMB) | TECH PUBLIC | DO-214AA(SMB) | 1,210 | ₹5.09 · 1,210 in stock | View |
 | TPSMBJ36CA#C41425669TECH PUBLIC · SMB | TECH PUBLIC | SMB | 1,250 | ₹6.62 · 1,250 in stock | View |
