VISHAYDatasheet (PDF)

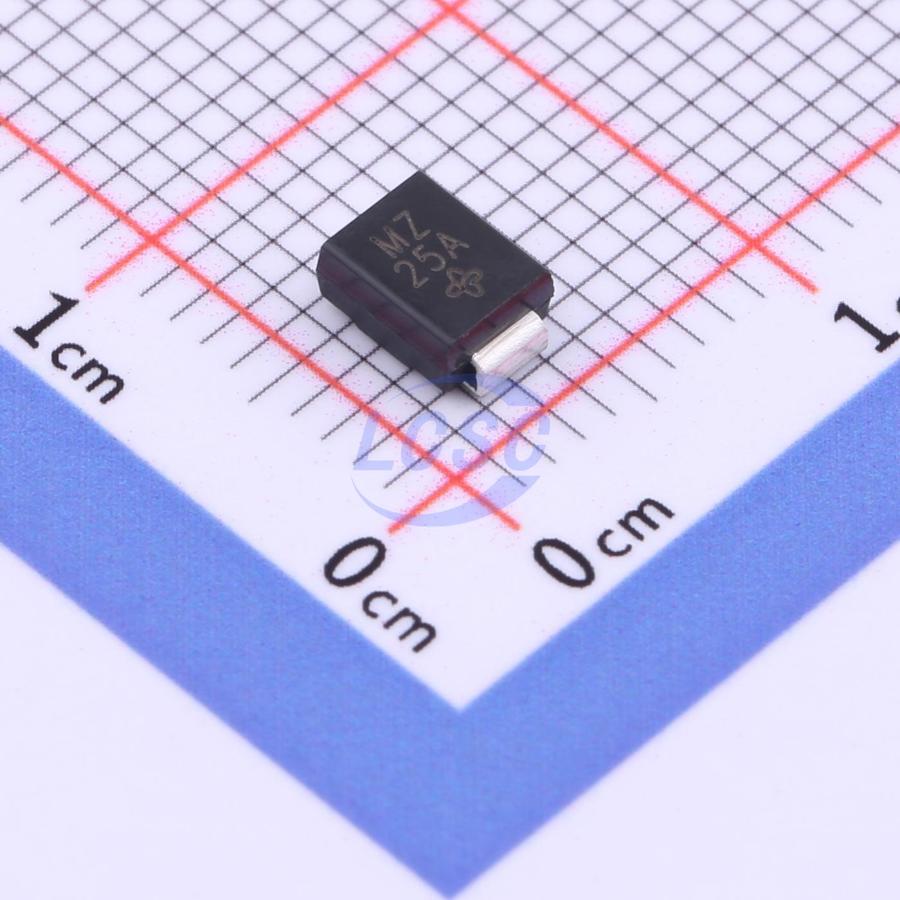

SMBJ51CA-E3/52
82.4VC Clamp 7.3A@10/1000us Ipp TVS DIODE SMB(DO-214AA)
SMB(DO-214AA)ROHS3 CompliantActive
TVS DIODE 51VWM 82.4VC SMB(DO-214AA)
- Manufacturer
- VISHAY
- Manufacturer part #
- SMBJ51CA-E3/52
- Store part #
- C1976655
- Package / case
- SMB(DO-214AA)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C1976655
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.25 | ₹216.25 |
| 50+ | ₹34.76 | ₹1,738.00 |
| 150+ | ₹31.12 | ₹4,668.00 |
| 750+ | ₹26.58 | ₹19,935.00 |
| 2,250+ | ₹24.55 | ₹55,237.50 |
| 5,250+ | ₹23.35 | ₹1,22,587.50 |
5 × ₹43.25
₹216.25
excl. GST
₹255.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 750 per reel
SMBJ51CA-E3/52
₹216.25 for 5 + GST
Specifications
- Clamping Voltage
- 82.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 7.3A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 62.7V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 51V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 750 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.2 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, and telecommunication.
Key features
- Low profile package
- Ideal for automated placement
- Glass passivated chip junction
- Available in uni-directional and bi-directional
- 600 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01%
- Excellent clamping capability
- Very fast response time
- Low incremental surge resistance
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 ℃
- AEC-Q101 qualified available
- Automotive ordering code: base P/NHE3 or P/NHM3
- Material categorization: for definitions of compliance please see www.vishay.com/doc?299912
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ51CA-13-F#C135082DIODES · SMB | DIODES | SMB | 865 | ₹26.30 · 865 in stock | View |
 | ASMBJ51CA#C163653PTTC(Polytronics Tech) · SMB(DO-214AA) | PTTC(Polytronics Tech) | SMB(DO-214AA) | 9 | ₹26.66 · 9 in stock | View |
| SMBJ51CA#C20883197OTW · SMB(DO-214AA) | OTW | SMB(DO-214AA) | 100 | ₹5.19 · 100 in stock | View | |
 | SMBJ51CA#C49242967PDW · SMB(DO-214AA) | PDW | SMB(DO-214AA) | 1,000 | ₹5.64 · 1,000 in stock | View |
 | SMBJ51CA#C50087809JDTfuse · SMB | JDTfuse | SMB | 2,990 | ₹7.32 · 2,990 in stock | View |
