MSKSEMIDatasheet (PDF)

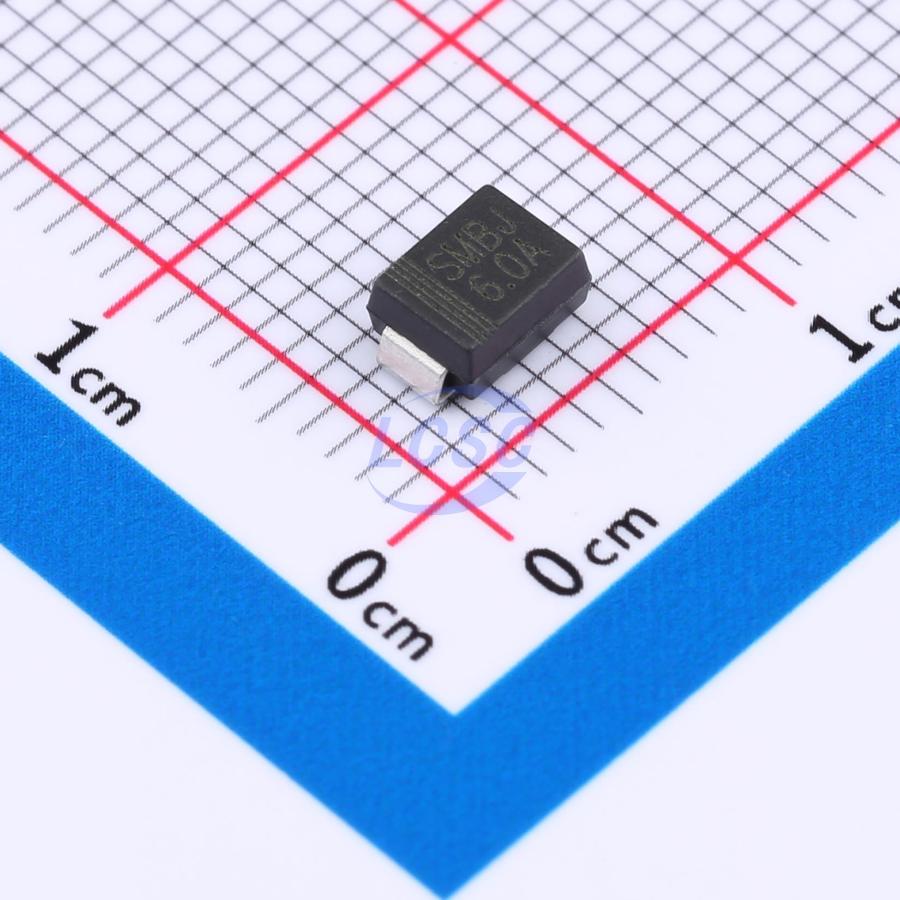

SMBJ6.0A
10.3VC Clamp 58.26A@10/1000us Ipp TVS DIODE DO-214AA(SMB)
DO-214AA(SMB)RoHSActive
TVS DIODE 6VWM 10.3VC DO-214AA(SMB)
- Manufacturer
- MSKSEMI
- Manufacturer part #
- SMBJ6.0A
- Store part #
- C5331096
- Package / case
- DO-214AA(SMB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,520 in stock
#C5331096
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.42 | ₹88.40 |
| 200+ | ₹3.49 | ₹698.00 |
| 600+ | ₹2.96 | ₹1,776.00 |
| 3,000+ | ₹2.46 | ₹7,380.00 |
| 9,000+ | ₹2.20 | ₹19,800.00 |
| 21,000+ | ₹2.05 | ₹43,050.00 |
20 × ₹4.42
₹88.40
excl. GST
₹104.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ6.0A
₹88.40 for 20 + GST
Specifications
- Clamping Voltage
- 10.3V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 58.26A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 6.67V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 800uA
- Reverse Stand-Off Voltage (Vrwm)
- 6V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.2 g
Overview
Transient Voltage Suppression diodes, also known as TVS diodes, are protective electronic components used to shield electrical equipment from voltage spikes introduced on a line.
Applications
- Computer systems
- Home appliances
- Video input
Key features
- Surface mount applications
- Excellent clamping capability
- 600 W peak pulse power capability under 10/1000 μs waveform
- Maximum reverse working voltage (VRWM): 3.3 - 440V
- Low-profile package with low inductance
- Typical reverse current (IR) < 1 μA above 10 V
- Fast response time: typically < 1.0 ps from 0V to minimum breakdown voltage (VBRmin)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | P6SMB6.8A(MS)#C20538963MSKSEMI · DO-214AA(SMB) | MSKSEMI | DO-214AA(SMB) | 180 | ₹4.58 · 180 in stock | View |
 | SM6T6V8A-MS#C47021052MSKSEMI · DO-214AA(SMB) | MSKSEMI | DO-214AA(SMB) | 2,710 | ₹8.52 · 2,710 in stock | View |
 | P6SMB7.5A(MS)#C20538965MSKSEMI · DO-214AA(SMB) | MSKSEMI | DO-214AA(SMB) | 340 | ₹4.39 · 340 in stock | View |
 | SMBJ6.5A#C5331098MSKSEMI · DO-214AA(SMB) | MSKSEMI | DO-214AA(SMB) | 3,980 | ₹4.78 · 3,980 in stock | View |
