TECH PUBLICDatasheet (PDF)

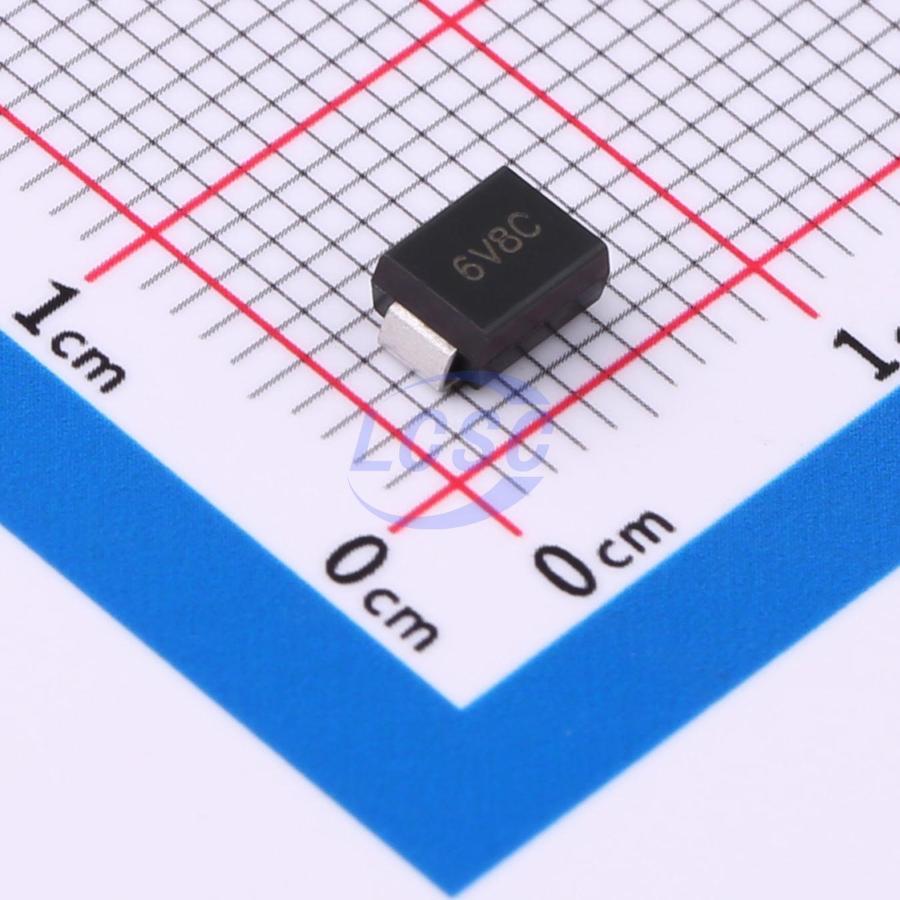

SMBJ6.8CA
nan
DO-214AA(SMB)RoHSActive
6.8VWM DO-214AA(SMB)
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SMBJ6.8CA
- Store part #
- C41425636
- Package / case
- DO-214AA(SMB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,170 in stock
#C41425636
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.15 | ₹61.50 |
| 100+ | ₹4.95 | ₹495.00 |
| 300+ | ₹4.35 | ₹1,305.00 |
| 3,000+ | ₹3.65 | ₹10,950.00 |
| 6,000+ | ₹3.29 | ₹19,740.00 |
| 9,000+ | ₹3.11 | ₹27,990.00 |
10 × ₹6.15
₹61.50
excl. GST
₹72.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ6.8CA
₹61.50 for 10 + GST
Specifications
- Clamping Voltage
- 10.5V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 57.1A
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Voltage - Breakdown
- 7.14V
- Number of Channels
- 1
- type
- TVS
- Reverse Leakage Current (Ir)
- 500uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 6.8V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.199 g
Overview
Applications
- Personal Digital Assistants (PDAs)
- Mobile phones and accessories
- Handheld devices and notebook computers
- Portable instruments
Key features
- Peak power dissipation: 600W (10×1000μs pulses)
- Low incremental surge resistance
- Excellent clamping capability
- Fast response time
- Low leakage current
- Halogen-free and RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPSMBJ6.8CA#C41425671TECH PUBLIC · SMB | TECH PUBLIC | SMB | 3,170 | ₹7.66 · 3,170 in stock | View |
 | TPSMBJ6.5CA#C42370575TECH PUBLIC · SMB | TECH PUBLIC | SMB | 3,870 | ₹5.68 · 3,870 in stock | View |
 | SMBJ6.5CA#C5310982TECH PUBLIC · DO-214AA(SMB) | TECH PUBLIC | DO-214AA(SMB) | 3,230 | ₹7.82 · 3,230 in stock | View |
