VISHAYDatasheet (PDF)

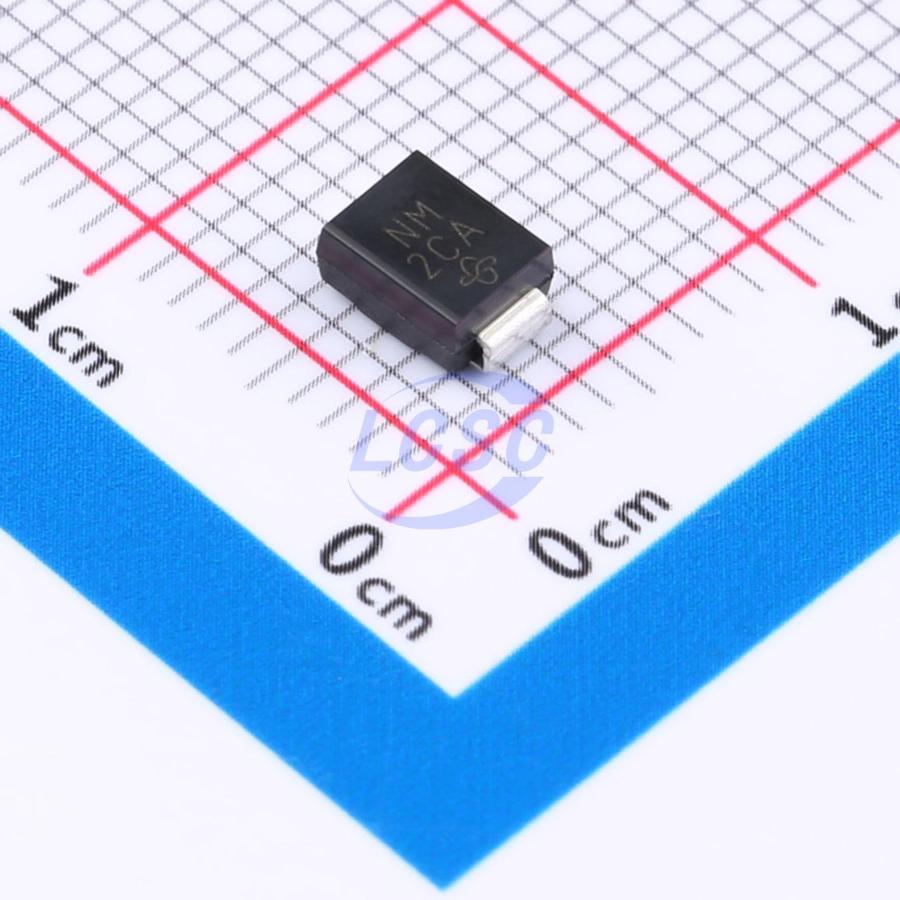

SMBJ64CA-E3/52
103VC Clamp 5.8A@10/1000us Ipp TVS DIODE SMB(DO-214AA)
SMB(DO-214AA)ROHS3 CompliantActive
TVS DIODE 64VWM 103VC SMB(DO-214AA)
- Manufacturer
- VISHAY
- Manufacturer part #
- SMBJ64CA-E3/52
- Store part #
- C1973364
- Package / case
- SMB(DO-214AA)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
467 in stock
#C1973364
Stock & price checked 47 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹79.90 | ₹79.90 |
| 10+ | ₹66.00 | ₹660.00 |
| 30+ | ₹60.14 | ₹1,804.20 |
| 100+ | ₹52.76 | ₹5,276.00 |
| 750+ | ₹49.51 | ₹37,132.50 |
| 1,500+ | ₹47.55 | ₹71,325.00 |
1 × ₹79.90
₹79.90
excl. GST
₹94.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 750 per reel
SMBJ64CA-E3/52
₹79.90 for 1 + GST
Specifications
- Clamping Voltage
- 103V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 5.8A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 78.6V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 64V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 750 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.211 g
