VISHAYDatasheet (PDF)

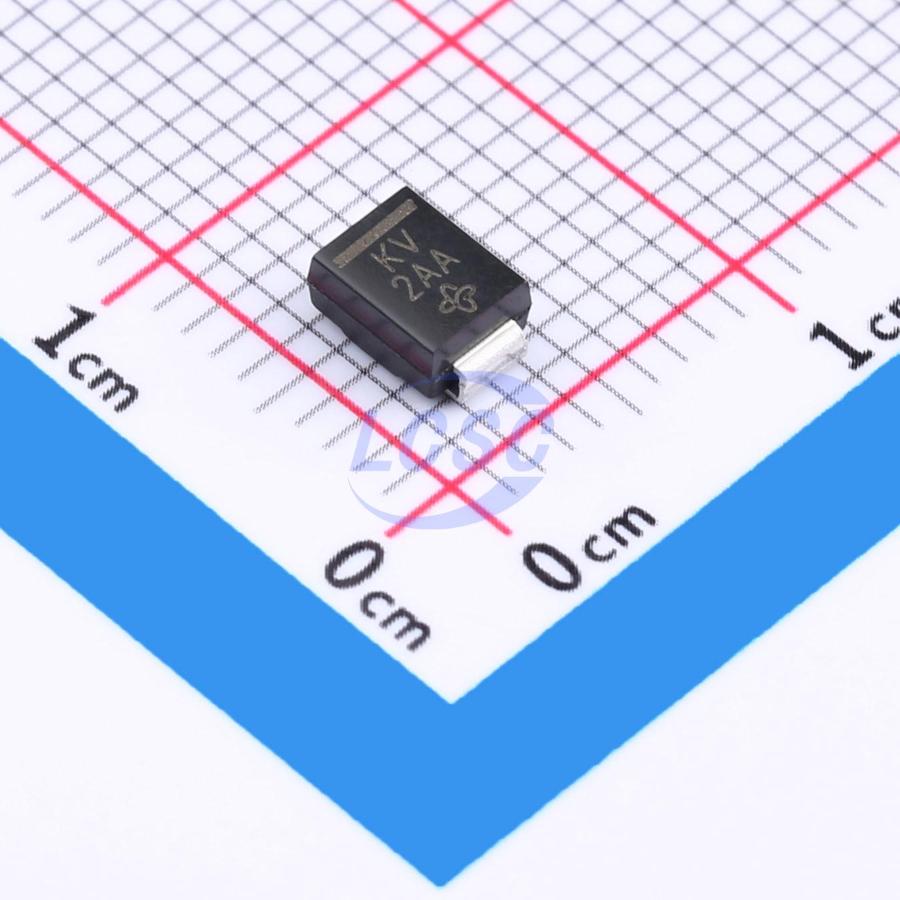

SMBJ9.0A-E3/5B
15.4VC Clamp 39A@10/1000us Ipp TVS DIODE SMB(DO-214AA)
SMB(DO-214AA)ROHS3 CompliantActive
TVS DIODE 9VWM 15.4VC SMB(DO-214AA)
- Manufacturer
- VISHAY
- Manufacturer part #
- SMBJ9.0A-E3/5B
- Store part #
- C1974518
- Package / case
- SMB(DO-214AA)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
325 in stock
#C1974518
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.06 | ₹125.30 |
| 50+ | ₹19.95 | ₹997.50 |
| 150+ | ₹17.75 | ₹2,662.50 |
| 500+ | ₹15.02 | ₹7,510.00 |
| 3,200+ | ₹13.80 | ₹44,160.00 |
| 6,400+ | ₹13.07 | ₹83,648.00 |
5 × ₹25.06
₹125.30
excl. GST
₹147.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,200 per reel
SMBJ9.0A-E3/5B
₹125.30 for 5 + GST
Specifications
- Clamping Voltage
- 15.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 39A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 11.1V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 10uA
- Reverse Stand-Off Voltage (Vrwm)
- 9V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,200 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.19 g
