VISHAYDatasheet (PDF)

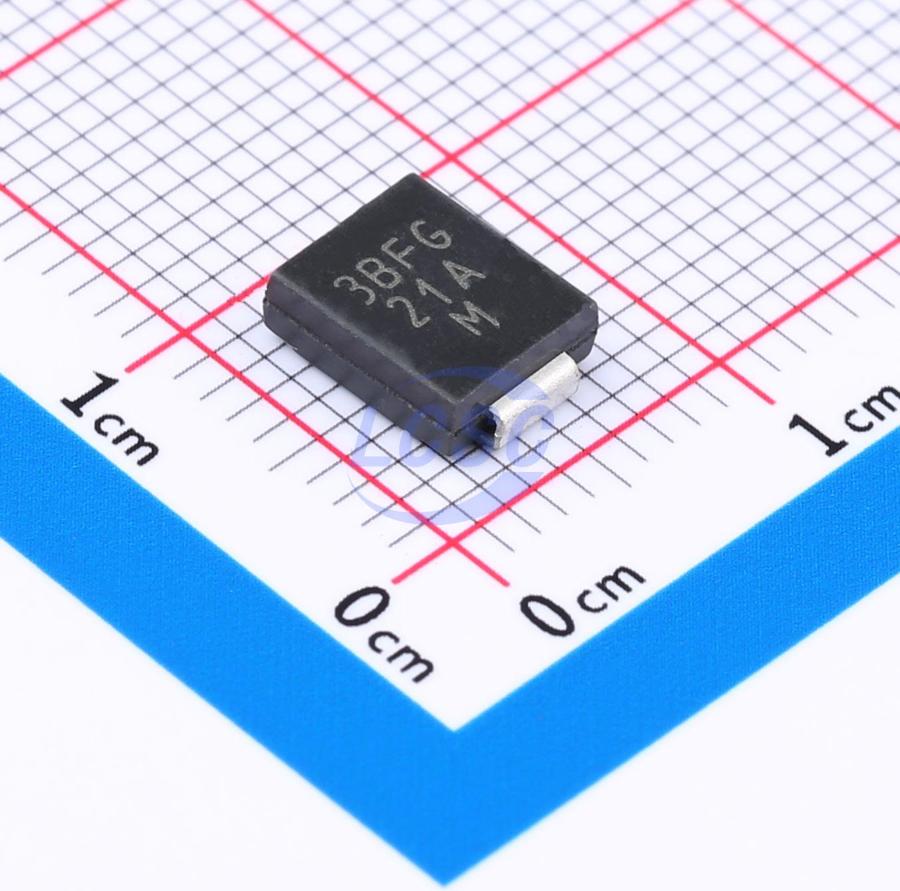

SMC3K28CA-M3/57
45.4VC Clamp 66.1A@10/1000us Ipp TVS DIODE SMC(DO-214AB)
SMC(DO-214AB)ROHS3 CompliantActive
TVS DIODE 28VWM 45.4VC SMC(DO-214AB)
- Manufacturer
- VISHAY
- Manufacturer part #
- SMC3K28CA-M3/57
- Store part #
- C1977701
- Package / case
- SMC(DO-214AB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
56 in stock
#C1977701
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹401.24 | ₹401.24 |
| 10+ | ₹340.70 | ₹3,407.00 |
| 30+ | ₹304.63 | ₹9,138.90 |
| 100+ | ₹268.34 | ₹26,834.00 |
| 500+ | ₹251.61 | ₹1,25,805.00 |
| 1,000+ | ₹243.88 | ₹2,43,880.00 |
1 × ₹401.24
₹401.24
excl. GST
₹473.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SMC3K28CA-M3/57
₹401.24 for 1 + GST
Specifications
- Clamping Voltage
- 45.4V
- Peak Pulse Current (Ipp)
- 66.1A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 3kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 34.4V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 2uA
- Reverse Stand-Off Voltage (Vrwm)
- 28V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.7 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive and telecommunication.
Key features
- Available in bi-directional polarity only
- 3000 W peak pulse power capability with a RoHS (10/1000 μs) waveform COMPLIANT
- Excellent clamping capability HALOEEN
- Very fast response time
- Low incremental surge resistance
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
- Not recommended for PCB bottom side wave mounting
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMC3K28CAHM3/57#C1976667VISHAY · SMC(DO-214AB) | VISHAY | SMC(DO-214AB) | 2 | ₹151.89 · 2 in stock | View |
| SM30T33CAY#C1975931ST · SMC(DO-214AB) | ST | SMC(DO-214AB) | 2 | ₹383.67 · 2 in stock | View | |
 | SMDJ28CA#C224072Littelfuse · DO-214AB(SMCJ) | Littelfuse | DO-214AB(SMCJ) | 259 | ₹57.56 · 259 in stock | View |
 | SMDJ28CA#C2994122MDD(Microdiode Semiconductor) · SMC | MDD(Microdiode Semiconductor) | SMC | 2,985 | ₹41.18 · 2,985 in stock | View |
 | SMDJ28CA#C4154771TWGMC · DO-214AB(SMC) | TWGMC | DO-214AB(SMC) | 10 | ₹20.24 · 10 in stock | View |
