VISHAYDatasheet (PDF)

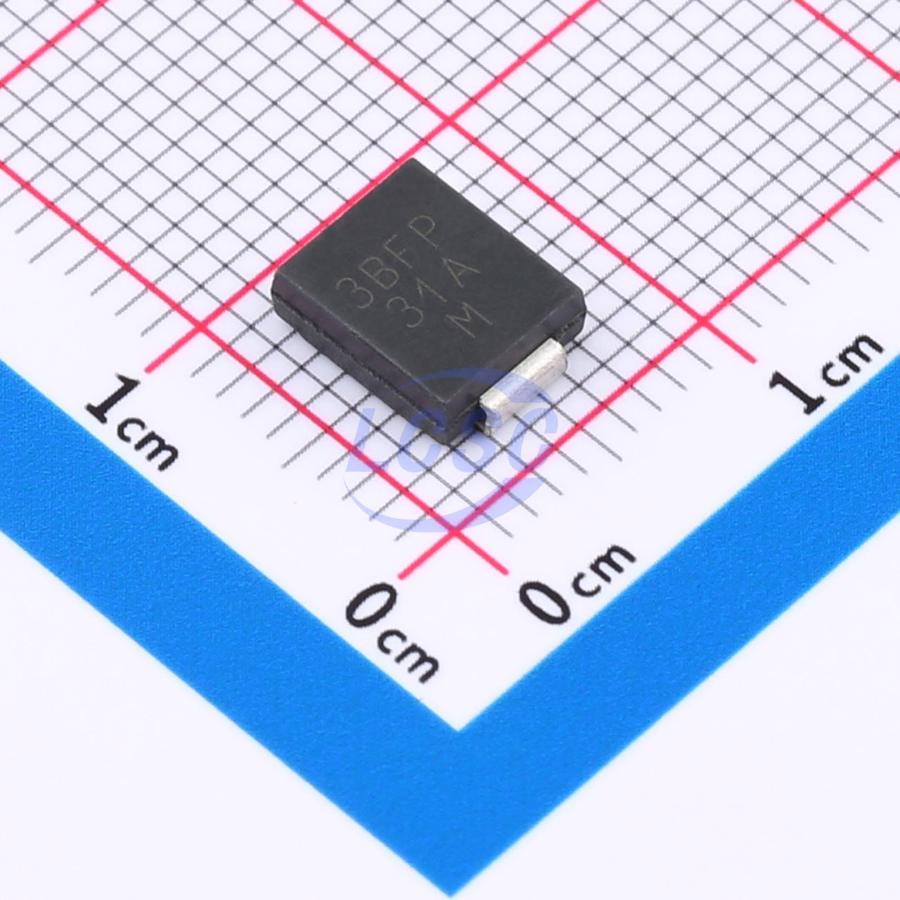

SMC3K36CAHM3/57
58.1VC Clamp 2A@10/1000us Ipp TVS DIODE SMC(DO-214AB)
SMC(DO-214AB)ROHS3 CompliantActive
TVS DIODE 36VWM 58.1VC SMC(DO-214AB)
- Manufacturer
- VISHAY
- Manufacturer part #
- SMC3K36CAHM3/57
- Store part #
- C3702917
- Package / case
- SMC(DO-214AB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19 in stock
#C3702917
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹427.91 | ₹427.91 |
| 10+ | ₹375.18 | ₹3,751.80 |
| 30+ | ₹342.33 | ₹10,269.90 |
| 100+ | ₹308.62 | ₹30,862.00 |
| 500+ | ₹293.27 | ₹1,46,635.00 |
| 850+ | ₹286.79 | ₹2,43,771.50 |
1 × ₹427.91
₹427.91
excl. GST
₹504.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 850 per reel
SMC3K36CAHM3/57
₹427.91 for 1 + GST
Specifications
- Clamping Voltage
- 58.1V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 51.6A
- Peak Pulse Power Dissipation (Ppp)
- 3kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 44.2V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 2uA
- Reverse Stand-Off Voltage (Vrwm)
- 36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 850 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.368 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive and telecommunication.
Key features
- Available in bidirectional polarity only Available
- 3000 W peak pulse power capability with a (10/1000 μs) waveform
- Excellent clamping capability RoHS
- Very fast response time COMPLIANT HALOGEN
- Low incremental surge resistance FREE Available
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
- AEC-Q101 qualified
- UL recognition for safety 497B with file number E136766
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMDJ36CA#C224075Littelfuse · DO-214AB | Littelfuse | DO-214AB | 6,122 | ₹72.20 · 6,122 in stock | View |
 | SMDJ36CA#C17703045MSKSEMI · SMC | MSKSEMI | SMC | 535 | ₹23.43 · 535 in stock | View |
 | SMDJ36CA#C42371556R+O · SMC(DO-214AB) | R+O | SMC(DO-214AB) | 22,795 | ₹26.83 · 22,795 in stock | View |
 | SMDJ36CA#C53100590TECH PUBLIC · SMC | TECH PUBLIC | SMC | 1,585 | ₹27.31 · 1,585 in stock | View |
 | ATV30C360JB-HF#C2443777Comchip · SMC(DO-214AB) | Comchip | SMC(DO-214AB) | 1 | ₹114.98 · 1 in stock | View |
