VISHAYDatasheet (PDF)

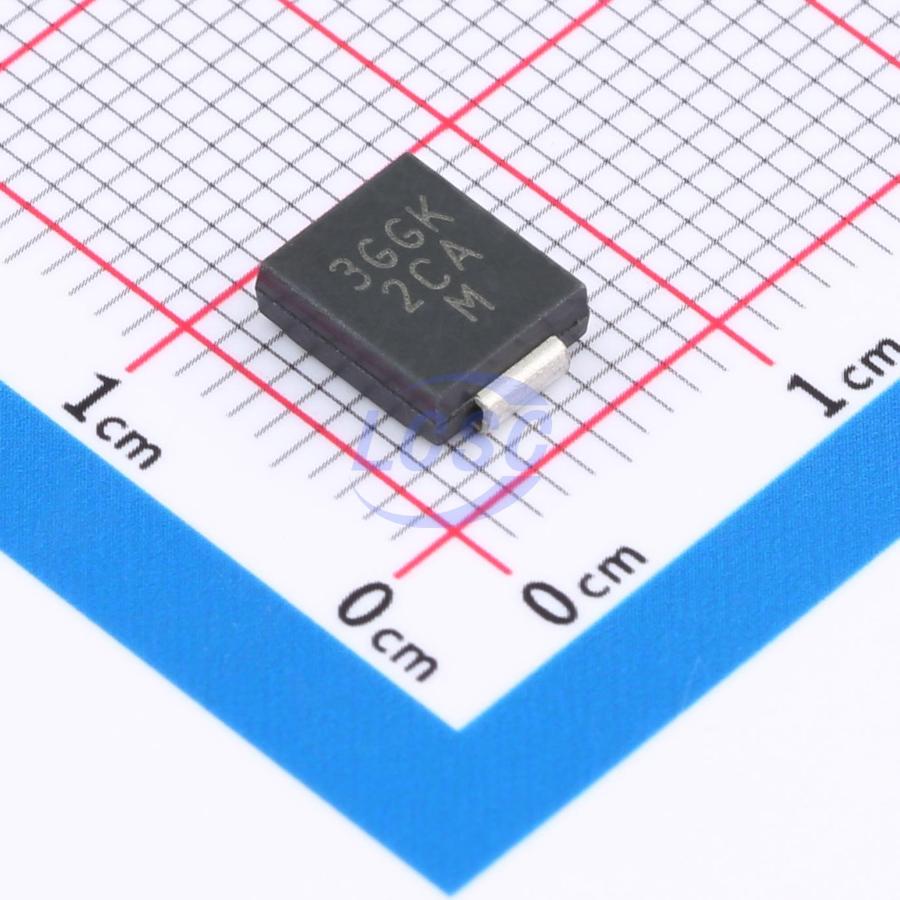

SMC3K60CAHM3_A/H
125VC Clamp 240A@8/20us Ipp TVS DIODE SMC(DO-214AB)
SMC(DO-214AB)ROHS3 CompliantActive
TVS DIODE 60VWM 125VC SMC(DO-214AB)
- Manufacturer
- VISHAY
- Manufacturer part #
- SMC3K60CAHM3_A/H
- Store part #
- C3700878
- Package / case
- SMC(DO-214AB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18 in stock
#C3700878
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹262.23 | ₹262.23 |
| 10+ | ₹258.58 | ₹2,585.80 |
| 30+ | ₹256.00 | ₹7,680.00 |
| 100+ | ₹253.63 | ₹25,363.00 |
1 × ₹262.23
₹262.23
excl. GST
₹309.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 850 per reel
SMC3K60CAHM3_A/H
₹262.23 for 1 + GST
Specifications
- Clamping Voltage
- 125V
- Peak Pulse Current (Ipp)
- 240A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 3kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 73.7V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 60V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 850 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.53 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive and telecommunication.
Key features
- Bidirectional - Peak pulse power
- 3000 W (10/1000 μs)
- 30 kW (8/20 μs)
- Excellent clamping capability
- Very fast response time
- Low incremental surge resistance
- Meets MSL level 1, per J - STD - 020, LF maximum peak of 260℃
- AEC - Q101 qualified
- UL recognition for safety 497B with file number E136766
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SMC3K58CAHM3_A/I#C20038210VISHAY · DO-214AB(SMC) | VISHAY | DO-214AB(SMC) | 10 | ₹271.90 · 10 in stock | View | |
 | SMDJ60CA#C42394438R+O · SMC(DO-214AB) | R+O | SMC(DO-214AB) | 11,935 | ₹27.73 · 11,935 in stock | View |
| SMC30J58CA#C20033303ST · SMC | ST | SMC | 2,500 | ₹272.00 · 2,500 in stock | View | |
 | SMDJ64CA#C2990261Liown · SMC(DO-214AB) | Liown | SMC(DO-214AB) | 925 | ₹28.40 · 925 in stock | View |
 | SMDJ64CA#C42371551R+O · SMC(DO-214AB) | R+O | SMC(DO-214AB) | 15,215 | ₹29.30 · 15,215 in stock | View |
