VISHAYDatasheet (PDF)

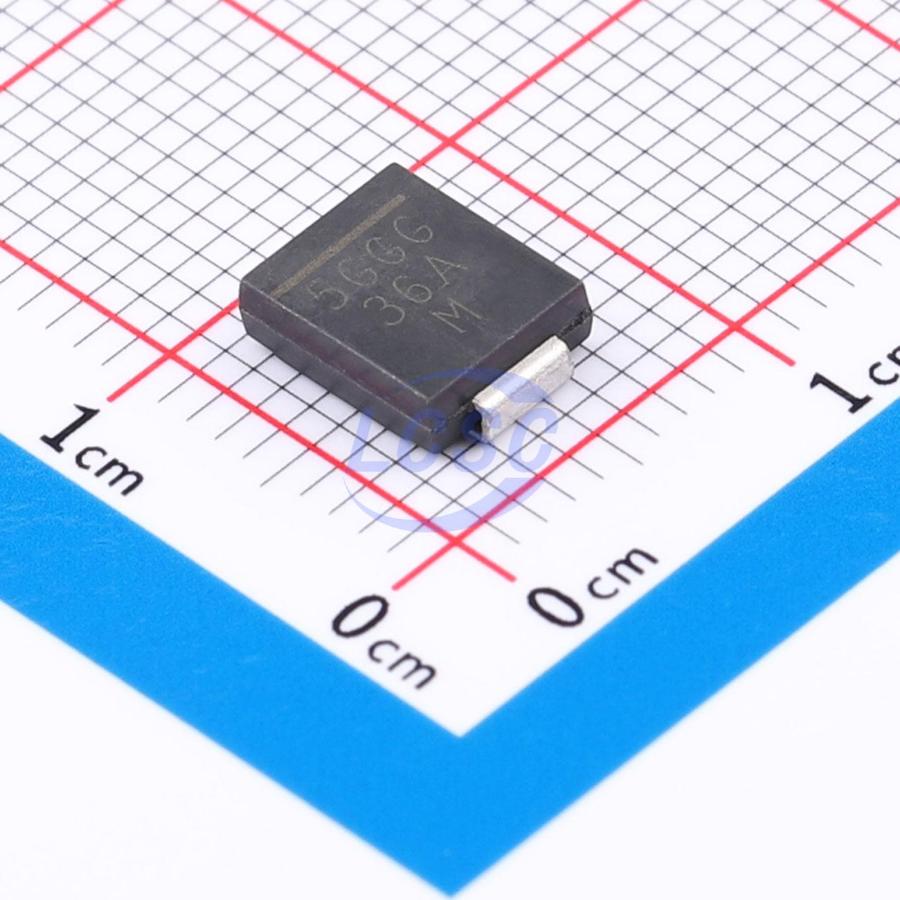

SMC5K58A-M3/H
93.6VC Clamp 53.4A@10/1000us Ipp TVS DIODE SMC(DO-214AB)
SMC(DO-214AB)ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- SMC5K58A-M3/H
- Store part #
- C1973465
- Package / case
- SMC(DO-214AB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
46 in stock
#C1973465
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹493.02 | ₹493.02 |
| 10+ | ₹423.11 | ₹4,231.10 |
| 30+ | ₹381.43 | ₹11,442.90 |
| 100+ | ₹339.53 | ₹33,953.00 |
1 × ₹493.02
₹493.02
excl. GST
₹581.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 850 per reel
SMC5K58A-M3/H
₹493.02 for 1 + GST
Specifications
- Clamping Voltage
- 93.6V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 53.4A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 71.2V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 58V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 850 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.389 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication.
Key features
- Available in uni-directional polarity only
- 5000 W peak pulse power capability with a RoHS 10/1000 μs waveform COMPLIANT
- Excellent clamping capability HALOEEN
- Very fast response time
- Low incremental surge resistance
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 5.0SMDJ58A#C41428834Slkor · SMC | Slkor | SMC | 2,840 | ₹48.86 · 2,840 in stock | View |
| 5.0SMDJ58A#C54525253MDD(Microdiode Semiconductor) · SMC | MDD(Microdiode Semiconductor) | SMC | 2,870 | ₹37.92 · 2,870 in stock | View | |
 | 5.0SMDJ58A#C55190940TECH PUBLIC · SMC | TECH PUBLIC | SMC | 3,000 | ₹55.29 · 3,000 in stock | View |
| 5.0SMLJ58A#C20483846MDE Semiconductor Inc · DO-214AB (SMCJ) | MDE Semiconductor Inc | DO-214AB (SMCJ) | 500 | ₹1,048.64 · 500 in stock | View | |
 | 5.0SMDJ58A#C5247938Wayon · SMC | Wayon | SMC | 2,700 | ₹60.29 · 2,700 in stock | View |
