VISHAYDatasheet (PDF)

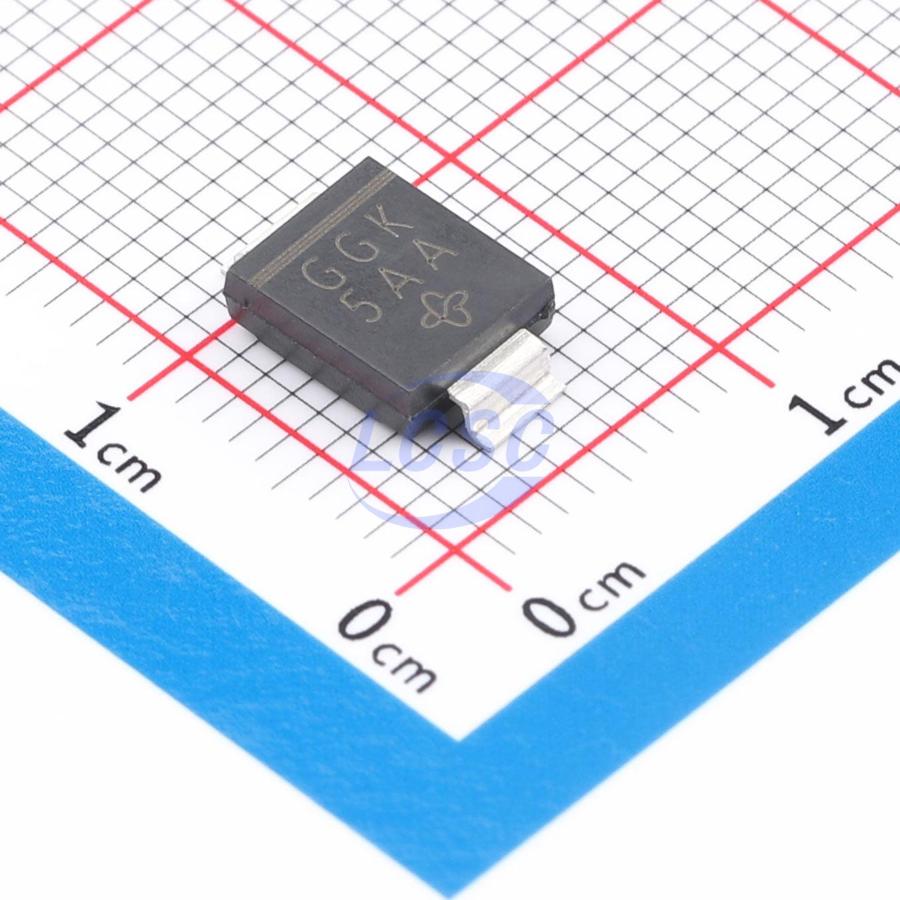

SMCG60A-E3/57T
96VC Clamp 15.5A@10/1000us Ipp TVS DIODE DO-215AB(SMCG)
DO-215AB(SMCG)ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- SMCG60A-E3/57T
- Store part #
- C1973468
- Package / case
- DO-215AB(SMCG)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
46 in stock
#C1973468
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹213.70 | ₹213.70 |
| 10+ | ₹179.21 | ₹1,792.10 |
| 30+ | ₹157.73 | ₹4,731.90 |
| 100+ | ₹135.61 | ₹13,561.00 |
| 500+ | ₹125.62 | ₹62,810.00 |
| 850+ | ₹121.28 | ₹1,03,088.00 |
1 × ₹213.70
₹213.70
excl. GST
₹252.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 850 per reel
SMCG60A-E3/57T
₹213.70 for 1 + GST
Specifications
- Clamping Voltage
- 96V
- Peak Pulse Current (Ipp)
- 15.5A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 73.7V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 60V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 850 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.26 g
Overview
Applications
- Protection of sensitive electronic equipment against voltage transients on signal lines of ICs, MOSFETs, sensors in consumer, computer, industrial, automotive, and telecom applications, caused by inductive load switching and lightning strikes.
Key features
- Low-profile package
- Suitable for automated placement
- Glass passivated chip junction
- Unidirectional and bidirectional options available
- Excellent clamping capability
- Very fast response time
- Low incremental surge resistance
- MSL Level 1 per J-STD-020, lead-free peak reflow temperature 260 °C
- AEC-Q101 qualified
