VISHAYDatasheet (PDF)

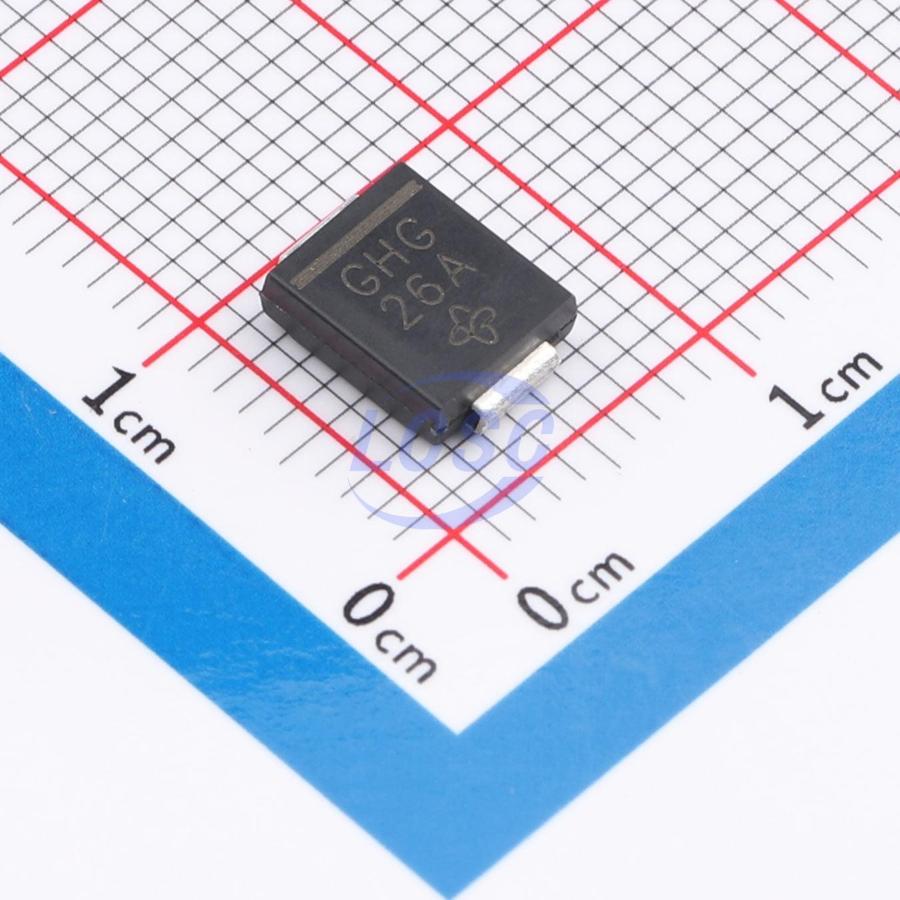

SMCJ120A-E3/57T
193VC Clamp 7.8A Ipp TVS DIODE DO-214AB(SMCJ)
DO-214AB(SMCJ)ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- SMCJ120A-E3/57T
- Store part #
- C1975269
- Package / case
- DO-214AB(SMCJ)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
102 in stock
#C1975269
Stock & price checked 42 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹129.40 | ₹129.40 |
| 10+ | ₹111.78 | ₹1,117.80 |
| 30+ | ₹102.74 | ₹3,082.20 |
| 100+ | ₹93.93 | ₹9,393.00 |
| 500+ | ₹88.77 | ₹44,385.00 |
| 850+ | ₹85.98 | ₹73,083.00 |
1 × ₹129.40
₹129.40
excl. GST
₹152.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 850 per reel
SMCJ120A-E3/57T
₹129.40 for 1 + GST
Specifications
- Clamping Voltage
- 193V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 7.8A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 147V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 120V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 850 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.23 g
