TECH PUBLICDatasheet (PDF)

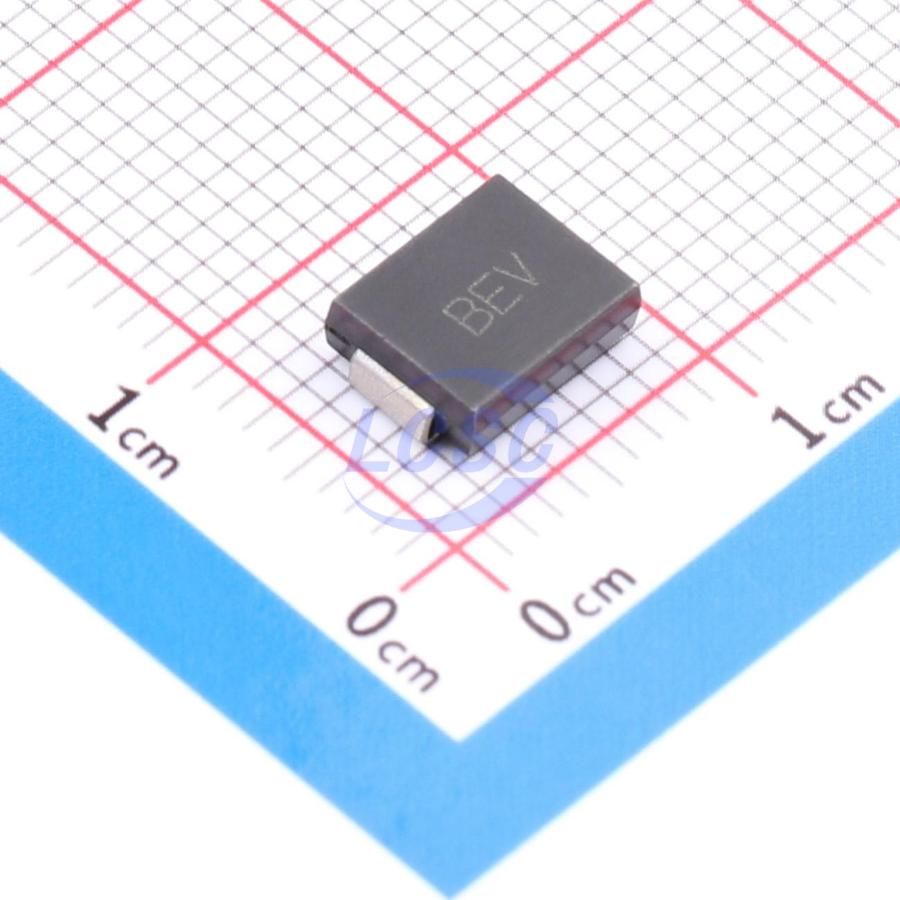

SMCJ20CA
32.4V 46.3A@10/1000us 1.5kW@10/1000us 24.5V Bidirectional 20V SMC TVS Diodes
SMCRoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SMCJ20CA
- Store part #
- C53260872
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,015 in stock
#C53260872
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.43 | ₹67.15 |
| 50+ | ₹10.56 | ₹528.00 |
| 150+ | ₹9.13 | ₹1,369.50 |
| 500+ | ₹8.06 | ₹4,030.00 |
| 3,000+ | ₹7.20 | ₹21,600.00 |
| 6,000+ | ₹6.76 | ₹40,560.00 |
5 × ₹13.43
₹67.15
excl. GST
₹79.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMCJ20CA
₹67.15 for 5 + GST
Specifications
- Clamping Voltage
- 32.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 46.3A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 24.5V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 20V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.346 g
