VISHAYDatasheet (PDF)
SMCJ24A-E3/57T

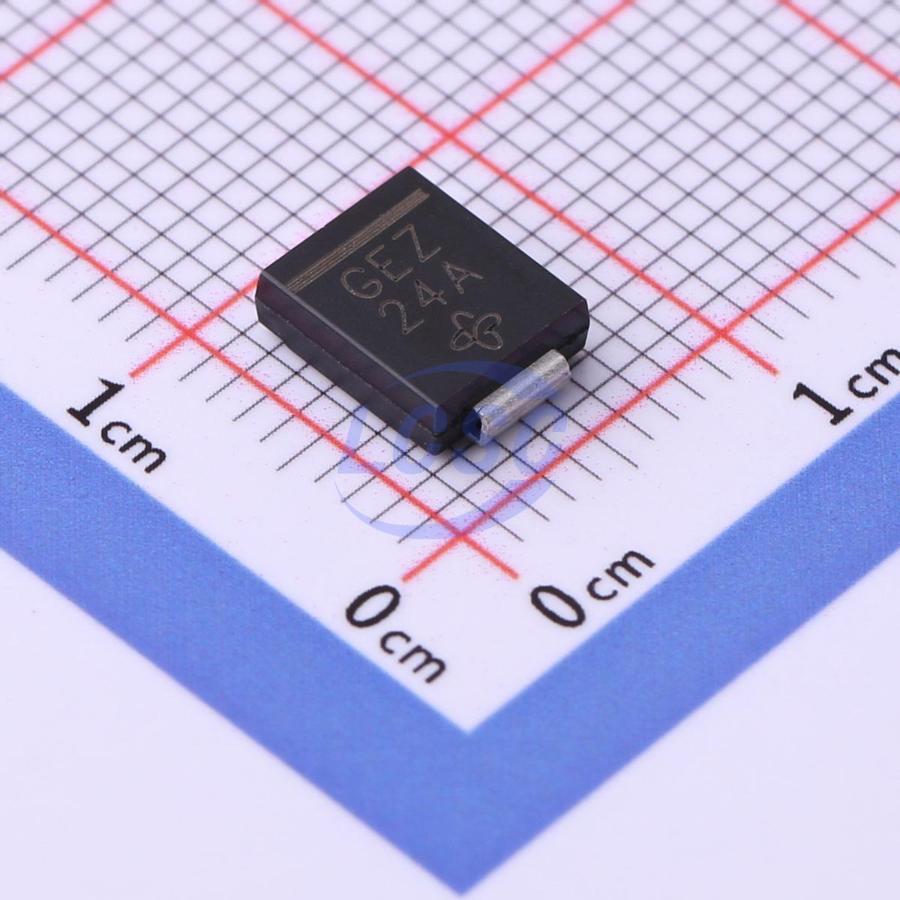

38.9VC Clamp 38.6A@10/1000us Ipp TVS DIODE SMC(DO-214AB)
SMC(DO-214AB)ROHS3 CompliantActive
TVS DIODE 24VWM 38.9VC SMC(DO-214AB)
- Manufacturer
- VISHAY
- Manufacturer part #
- SMCJ24A-E3/57T
- Store part #
- C1974568
- Package / case
- SMC(DO-214AB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,490 in stock
#C1974568
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹53.28 | ₹266.40 |
| 50+ | ₹41.30 | ₹2,065.00 |
| 150+ | ₹36.17 | ₹5,425.50 |
| 850+ | ₹29.77 | ₹25,304.50 |
| 2,550+ | ₹26.91 | ₹68,620.50 |
| 5,100+ | ₹25.20 | ₹1,28,520.00 |
5 × ₹53.28
₹266.40
excl. GST
₹314.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 850 per reel
SMCJ24A-E3/57T
₹266.40 for 5 + GST
Specifications
- Clamping Voltage
- 38.9V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 38.6A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 29.5V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 850 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.27 g
