LittelfuseDatasheet (PDF)

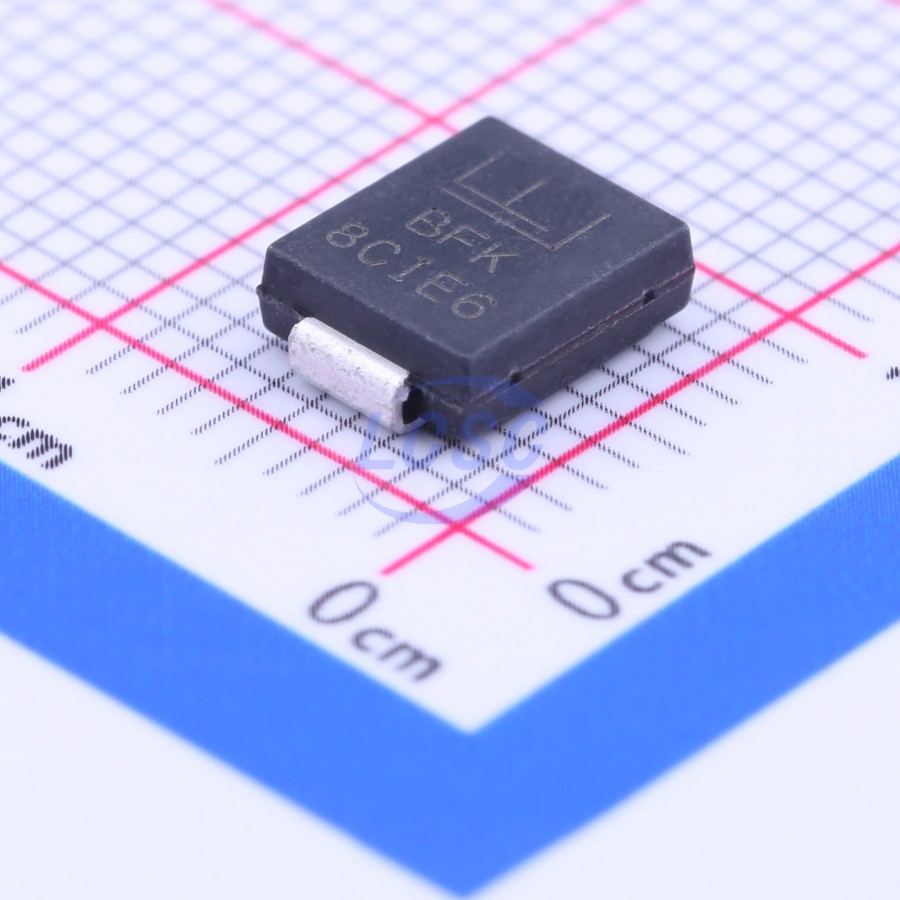

SMCJ30CA
48.4VC Clamp 31A@10/1000us Ipp TVS DIODE DO-214AB
DO-214ABROHS3 CompliantActive
TVS DIODE 30VWM 48.4VC DO-214AB
- Manufacturer
- Littelfuse
- Manufacturer part #
- SMCJ30CA
- Store part #
- C151281
- Package / case
- DO-214AB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
300 in stock
#C151281
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.92 | ₹219.60 |
| 50+ | ₹34.39 | ₹1,719.50 |
| 150+ | ₹30.29 | ₹4,543.50 |
| 500+ | ₹25.20 | ₹12,600.00 |
| 3,000+ | ₹23.18 | ₹69,540.00 |
| 6,000+ | ₹21.81 | ₹1,30,860.00 |
5 × ₹43.92
₹219.60
excl. GST
₹259.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMCJ30CA
₹219.60 for 5 + GST
Specifications
- Clamping Voltage
- 48.4V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 31A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 36.8V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 30V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.448 g
