VISHAYDatasheet (PDF)

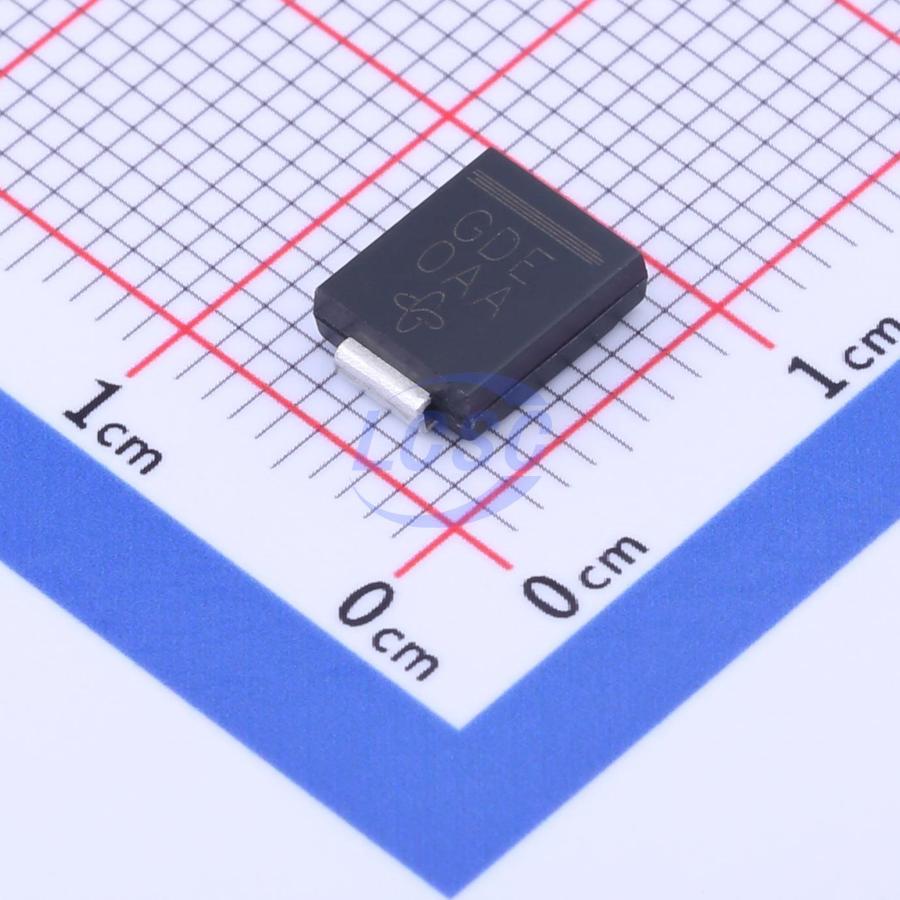

SMCJ5.0A-E3/57T
9.2VC Clamp 163A Ipp TVS DIODE SMC(DO-214AB)
SMC(DO-214AB)ROHS3 CompliantActive
TVS DIODE 5VWM 9.2VC SMC(DO-214AB)
- Manufacturer
- VISHAY
- Manufacturer part #
- SMCJ5.0A-E3/57T
- Store part #
- C968547
- Package / case
- SMC(DO-214AB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
430 in stock
#C968547
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.96 | ₹219.80 |
| 50+ | ₹36.36 | ₹1,818.00 |
| 150+ | ₹33.10 | ₹4,965.00 |
| 850+ | ₹29.03 | ₹24,675.50 |
| 2,550+ | ₹27.21 | ₹69,385.50 |
| 5,100+ | ₹26.13 | ₹1,33,263.00 |
5 × ₹43.96
₹219.80
excl. GST
₹259.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 850 per reel
SMCJ5.0A-E3/57T
₹219.80 for 5 + GST
Specifications
- Clamping Voltage
- 9.2V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 163A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 6.4V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1mA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 850 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.28 g
