Shun Xiang NuoDatasheet (PDF)

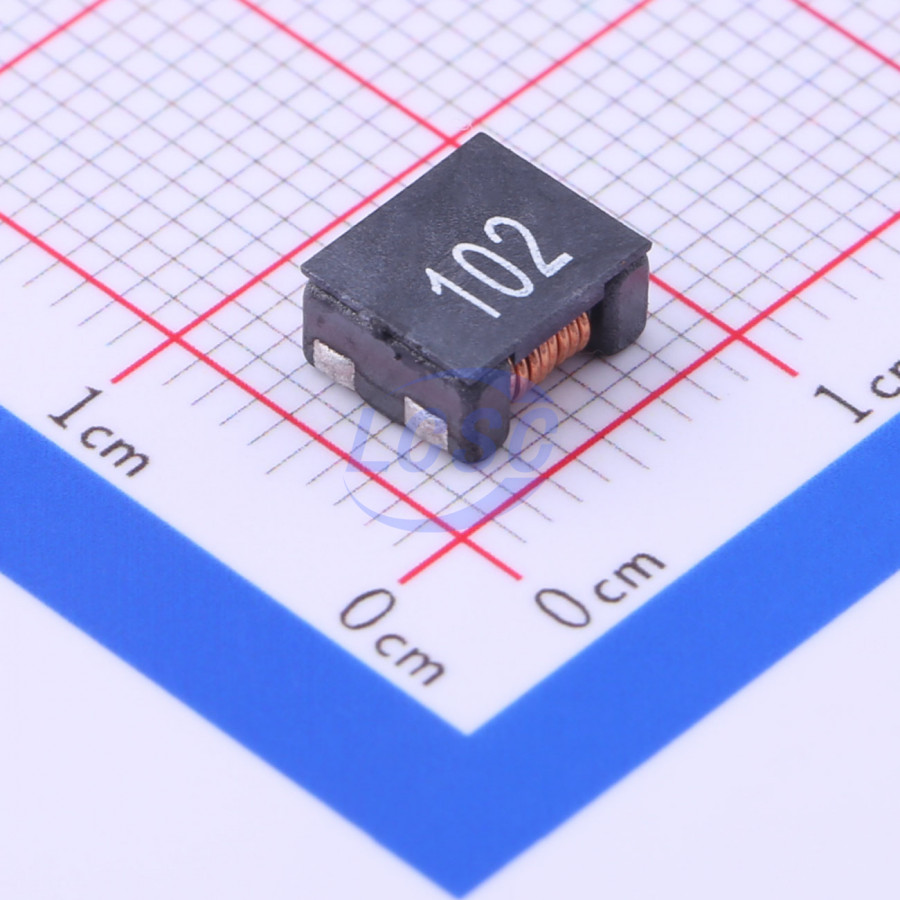

SMCM7060-102T
2Line Common Mode Choke Surface Mount 7x6mm 1.02kΩ 3A DCR 17mΩ
PopularSMD,7x6mmRoHSActive
CMC 3A 2LN 1.02kΩ SMD
- Manufacturer
- Shun Xiang Nuo
- Manufacturer part #
- SMCM7060-102T
- Store part #
- C381615
- Package / case
- SMD,7x6mm
- Category
- Common Mode Chokes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
86,739 in stock
#C381615
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹64.73 | ₹64.73 |
| 10+ | ₹53.98 | ₹539.80 |
| 30+ | ₹46.46 | ₹1,393.80 |
| 100+ | ₹40.22 | ₹4,022.00 |
| 500+ | ₹38.29 | ₹19,145.00 |
| 1,500+ | ₹36.99 | ₹55,485.00 |
1 × ₹64.73
₹64.73
excl. GST
₹76.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
SMCM7060-102T
₹64.73 for 1 + GST
Specifications
- DC Resistance(DCR)
- 17mΩ
- Insulation Resistance(IR)
- 10MΩ
- Number of Lines
- 2
- Operating Temperature
- -40℃~+125℃
- Voltage Rating
- 125V
- Current Rating
- 3A
- Impedance @ Frequency
- 1.02kΩ
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.5 g
Overview
Applications
- Power line noise countermeasure for electronic equipment (Notebook, server applications, Battery, etc.)
- Best for high current circuit such as car
- wireless charging and power device design
Key features
- Chip common mode filter for large current applications
- The shape of all series products is controlled to a minimum and the common mode impedance exceeds 300~1000 (at 10MHz), which can greatly suppress common mode noise
- Compatible with high-density portable devices, which are always being made smaller and lighter, because the height has been reduced XIS
- RoHS, Halogen Free and REACH Compliance
