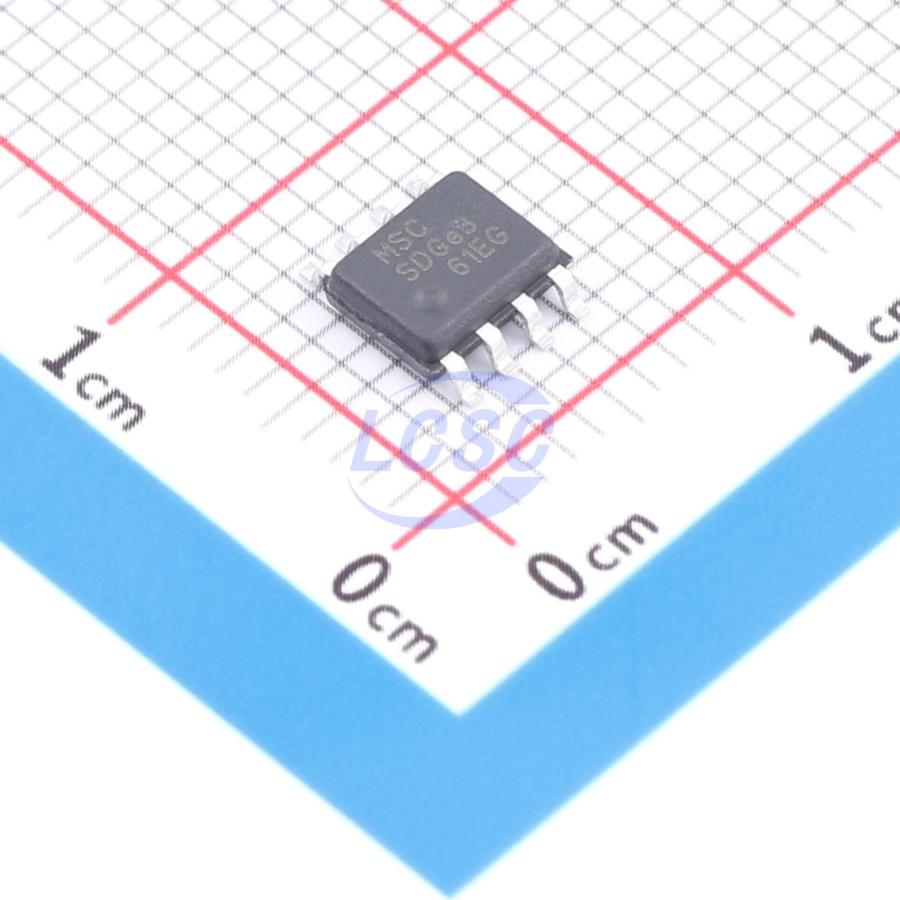

SMDA24E3/TR7
55VC Clamp 5A@8/20us Ipp TVS DIODE SO-8
- Manufacturer
- MICROCHIP
- Manufacturer part #
- SMDA24E3/TR7
- Store part #
- C2443375
- Package / case
- SO-8
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C2443375
Stock & price checked 16 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹447.08 | ₹447.08 |
| 10+ | ₹439.55 | ₹4,395.50 |
| 30+ | ₹434.39 | ₹13,031.70 |
| 100+ | ₹429.23 | ₹42,923.00 |
1 × ₹447.08
₹447.08
excl. GST
₹527.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per reel
SMDA24E3/TR7
₹447.08 for 1 + GST
Specifications
- Clamping Voltage
- 55V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 300W@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 26.7V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.52 g
Overview
This TRANSIENT VOLTAGE SUPPRESSOR (TVS) array is packaged in an SO - 8 configuration giving protection to 4 unidirectional or bi - directional data or interface lines. It is designed for use in applications where protection is required at the board level from voltage transients caused by electrostatic discharge (ESD) as defined in IEC 61000 - 4 - 2, electrical fast transients (EFT) per IEC 61000 - 4 - 4 and effects of secondary lightning. These TVS arrays have peak pulse power ratings of 300 watts (SMDA) and 500 watts (SMDB) for an 8/20 μsec pulse. They are suitable for protection of sensitive circuitry consisting of TTL, CMOS, DRAM’s, SRAM’s, HCMOS, HSIC and low - voltage interfaces from 3.3 volts to 24 volts
Key features
- Protects 3.0/3.3 volt up to 24 volt components
- Protects 4 unidirectional or bidirectional lines
- Provides electrically - isolated protection
- RoHS Compliant devices available by adding “e3” suffix
