LittelfuseDatasheet (PDF)

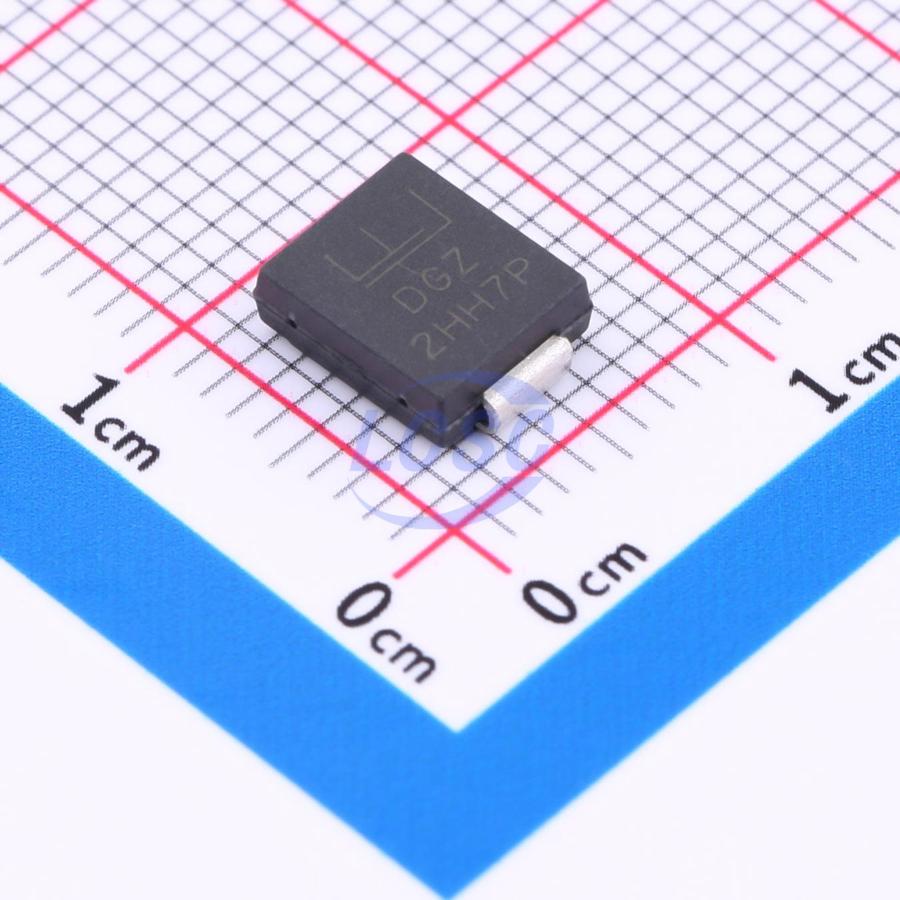

SMDJ100CA
162VC Clamp 18.5A Ipp TVS DIODE DO-214AB
DO-214ABROHS3 CompliantActive
TVS DIODE 100VWM 162VC DO-214AB
- Manufacturer
- Littelfuse
- Manufacturer part #
- SMDJ100CA
- Store part #
- C1977676
- Package / case
- DO-214AB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
190 in stock
#C1977676
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹100.73 | ₹100.73 |
| 10+ | ₹80.07 | ₹800.70 |
| 30+ | ₹69.64 | ₹2,089.20 |
| 100+ | ₹59.42 | ₹5,942.00 |
1 × ₹100.73
₹100.73
excl. GST
₹118.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMDJ100CA
₹100.73 for 1 + GST
Specifications
- Clamping Voltage
- 162V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 18.5A
- Peak Pulse Power Dissipation (Ppp)
- 3kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 111V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 2uA
- Reverse Stand-Off Voltage (Vrwm)
- 100V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.38 g
