LittelfuseDatasheet (PDF)

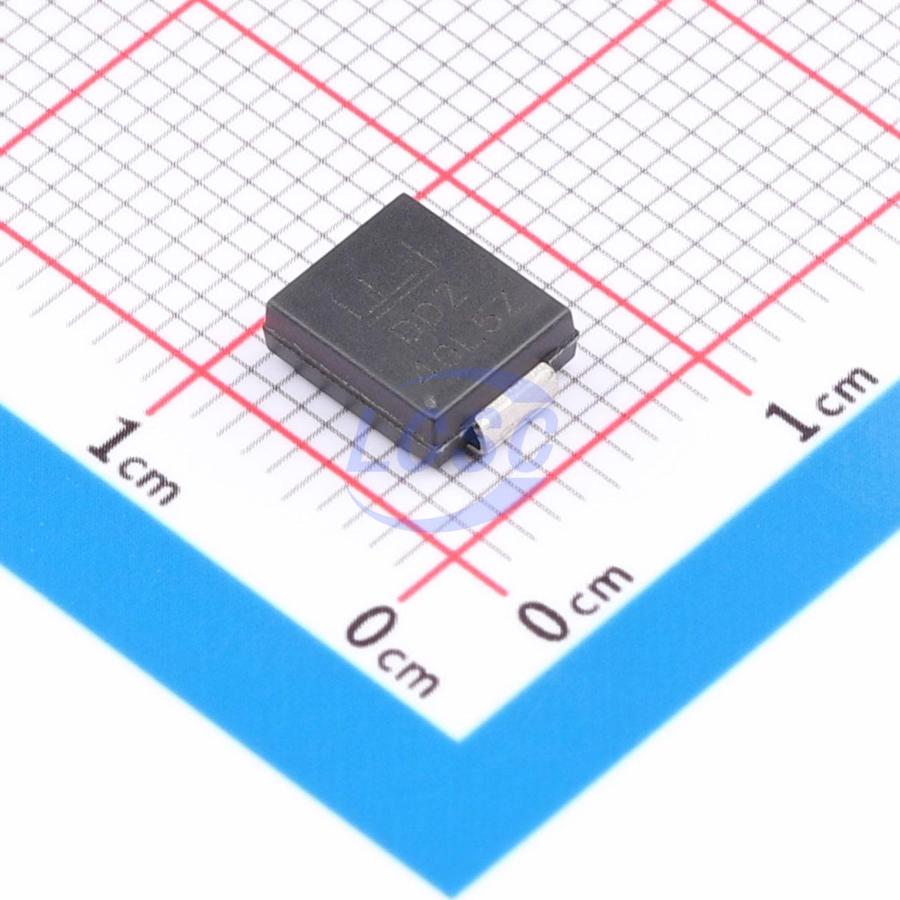

SMDJ11CA
18.2VC Clamp 164.8A Ipp TVS DIODE DO-214AB(SMCJ)
DO-214AB(SMCJ)ROHS3 CompliantActive
- Manufacturer
- Littelfuse
- Manufacturer part #
- SMDJ11CA
- Store part #
- C1975436
- Package / case
- DO-214AB(SMCJ)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
71 in stock
#C1975436
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹253.83 | ₹253.83 |
| 10+ | ₹247.96 | ₹2,479.60 |
| 30+ | ₹244.25 | ₹7,327.50 |
| 100+ | ₹240.34 | ₹24,034.00 |
1 × ₹253.83
₹253.83
excl. GST
₹299.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMDJ11CA
₹253.83 for 1 + GST
Specifications
- Clamping Voltage
- 18.2V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 164.8A
- Peak Pulse Power Dissipation (Ppp)
- 3kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 12.2V
- type
- TVS
- Reverse Leakage Current (Ir)
- 2uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 11V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.368 g
