JSCJDatasheet (PDF)

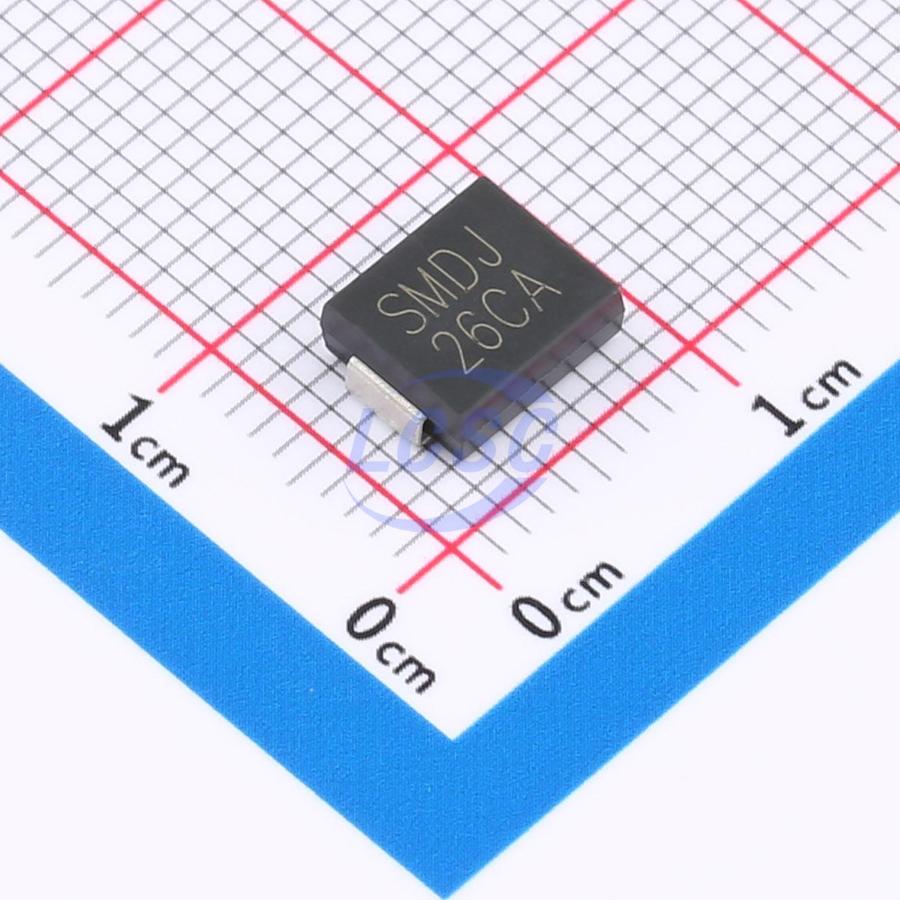

SMDJ26CA
42.1VC Clamp 71.26A Ipp TVS DIODE SMCG
SMCGROHS CompliantActive
TVS DIODE 26VWM 42.1VC SMCG
- Manufacturer
- JSCJ
- Manufacturer part #
- SMDJ26CA
- Store part #
- C3036230
- Package / case
- SMCG
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,675 in stock
#C3036230
Stock & price checked 16 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.44 | ₹147.20 |
| 50+ | ₹25.60 | ₹1,280.00 |
| 150+ | ₹23.96 | ₹3,594.00 |
| 500+ | ₹21.91 | ₹10,955.00 |
| 3,000+ | ₹20.04 | ₹60,120.00 |
| 6,000+ | ₹19.49 | ₹1,16,940.00 |
5 × ₹29.44
₹147.20
excl. GST
₹173.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMDJ26CA
₹147.20 for 5 + GST
Specifications
- Clamping Voltage
- 42.1V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 71.26A
- Peak Pulse Power Dissipation (Ppp)
- 3kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 31.9V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 26V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.39 g
