JSCJDatasheet (PDF)

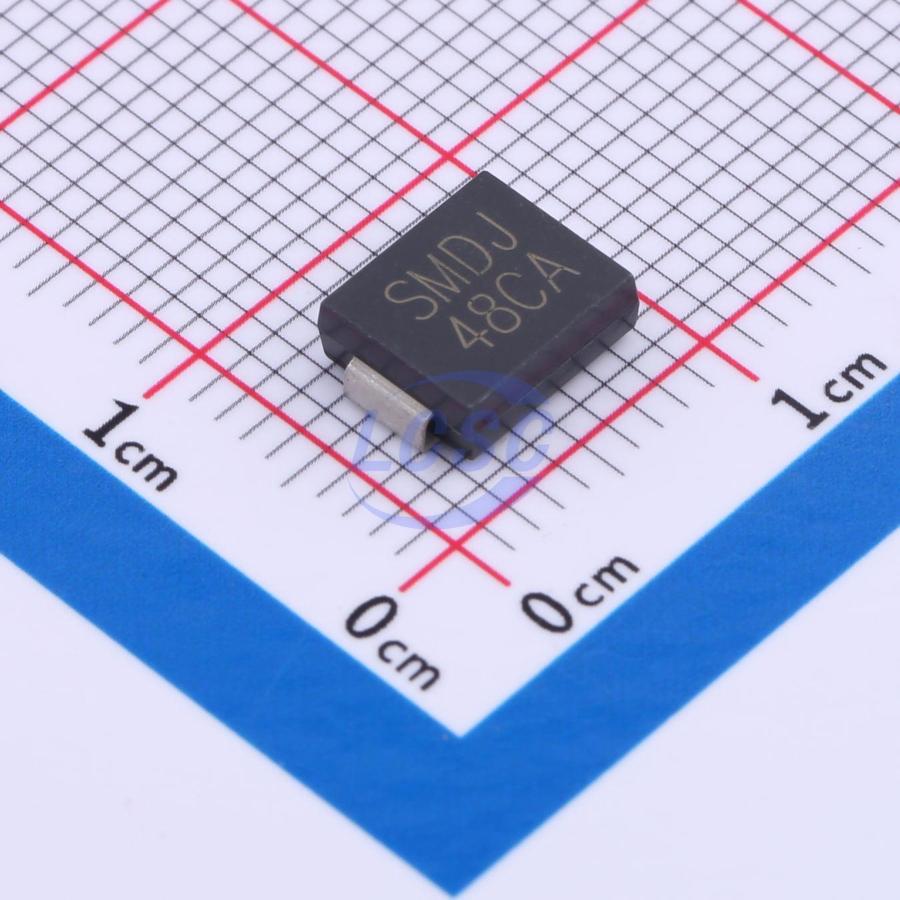

SMDJ48CA
77.4VC Clamp 38.76A Ipp TVS DIODE SMCG
SMCGROHS CompliantActive
TVS DIODE 48VWM 77.4VC SMCG
- Manufacturer
- JSCJ
- Manufacturer part #
- SMDJ48CA
- Store part #
- C3036236
- Package / case
- SMCG
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,350 in stock
#C3036236
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.37 | ₹216.85 |
| 50+ | ₹33.72 | ₹1,686.00 |
| 150+ | ₹29.60 | ₹4,440.00 |
| 500+ | ₹24.44 | ₹12,220.00 |
| 3,000+ | ₹22.13 | ₹66,390.00 |
| 6,000+ | ₹20.76 | ₹1,24,560.00 |
5 × ₹43.37
₹216.85
excl. GST
₹255.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMDJ48CA
₹216.85 for 5 + GST
Specifications
- Clamping Voltage
- 77.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 38.76A
- Peak Pulse Power Dissipation (Ppp)
- 3kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 58.9V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 48V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.39 g
