HXY MOSFETDatasheet (PDF)

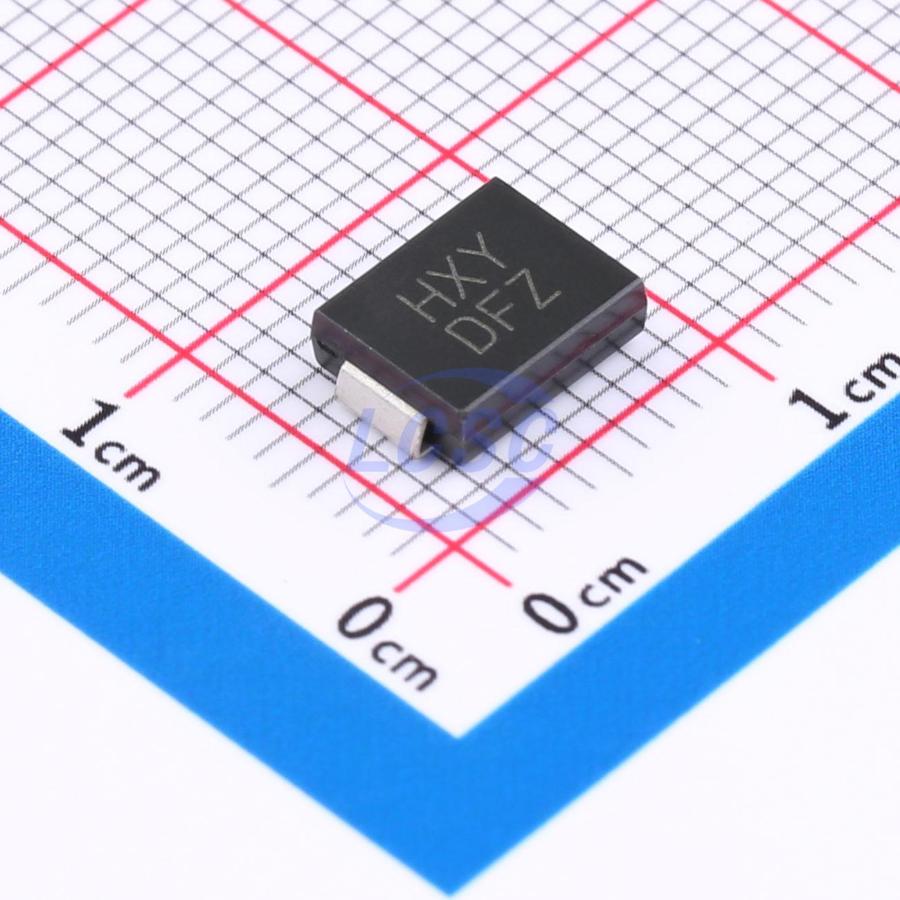

SMDJ51CA
82.4V 36.4A 3kW@10/1000us 62.7V Bidirectional 51V SMC TVS Diodes RoHS
SMCROHS CompliantActive
51VWM 82.4VC SMC
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- SMDJ51CA
- Store part #
- C49363599
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
80 in stock
#C49363599
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.63 | ₹163.15 |
| 50+ | ₹26.13 | ₹1,306.50 |
| 150+ | ₹23.35 | ₹3,502.50 |
| 500+ | ₹19.88 | ₹9,940.00 |
| 3,000+ | ₹18.34 | ₹55,020.00 |
| 6,000+ | ₹17.40 | ₹1,04,400.00 |
5 × ₹32.63
₹163.15
excl. GST
₹192.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMDJ51CA
₹163.15 for 5 + GST
Specifications
- Clamping Voltage
- 82.4V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 36.4A
- Peak Pulse Power Dissipation (Ppp)
- 3kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 62.7V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 2uA
- Reverse Stand-Off Voltage (Vrwm)
- 51V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.334 g
