LittelfuseDatasheet (PDF)

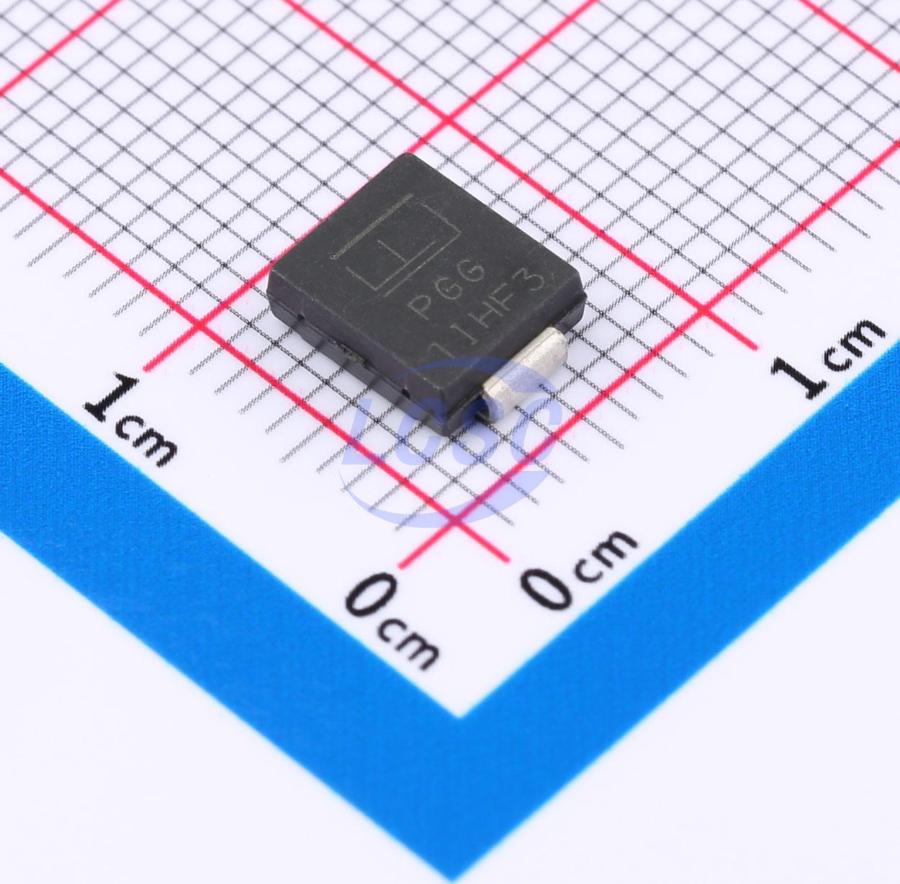

SMDJ58A
93.6VC Clamp 32.1A Ipp TVS DIODE DO-214AB(SMCJ)
DO-214AB(SMCJ)ROHS3 CompliantActive
- Manufacturer
- Littelfuse
- Manufacturer part #
- SMDJ58A
- Store part #
- C1976309
- Package / case
- DO-214AB(SMCJ)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22 in stock
#C1976309
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.42 | ₹55.42 |
| 10+ | ₹43.90 | ₹439.00 |
| 30+ | ₹39.12 | ₹1,173.60 |
| 100+ | ₹33.04 | ₹3,304.00 |
| 500+ | ₹30.22 | ₹15,110.00 |
| 1,000+ | ₹28.70 | ₹28,700.00 |
1 × ₹55.42
₹55.42
excl. GST
₹65.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMDJ58A
₹55.42 for 1 + GST
Specifications
- Clamping Voltage
- 93.6V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 32.1A
- Peak Pulse Power Dissipation (Ppp)
- 3kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 64.4V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 2uA
- Reverse Stand-Off Voltage (Vrwm)
- 58V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.35 g
