JSCJDatasheet (PDF)

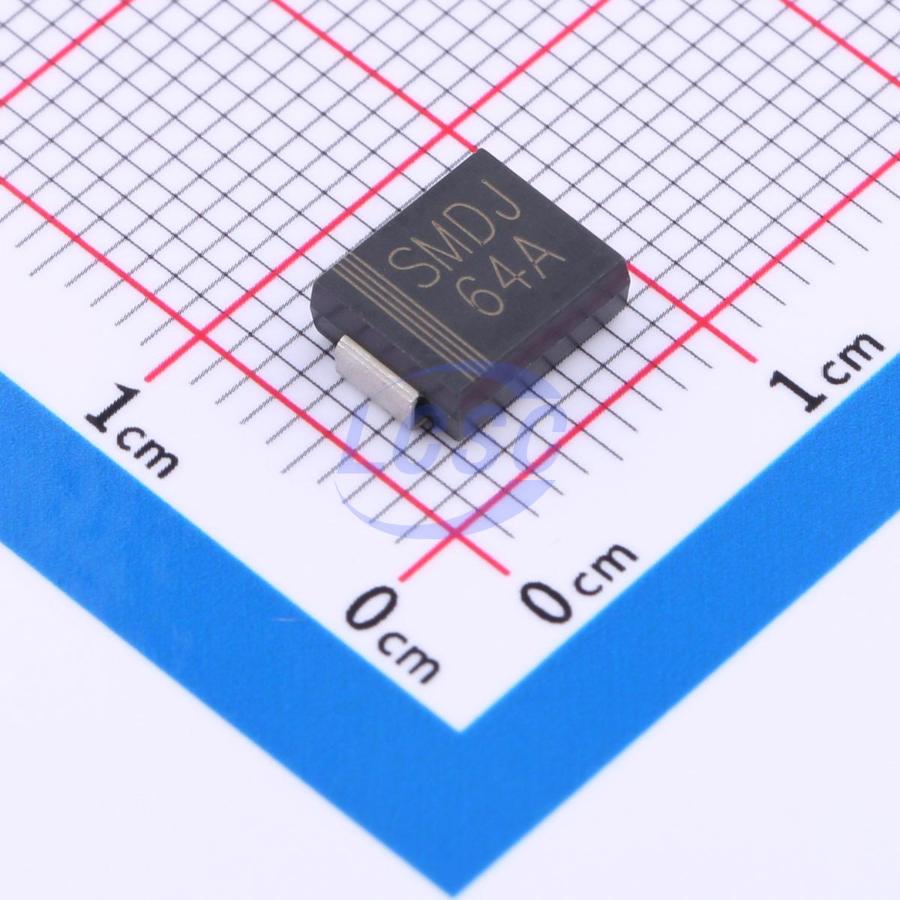

SMDJ64A
103VC Clamp 29.13A@10/1000us Ipp TVS DIODE SMCG
SMCGROHS CompliantActive
TVS DIODE 64VWM 103VC SMCG
- Manufacturer
- JSCJ
- Manufacturer part #
- SMDJ64A
- Store part #
- C3036247
- Package / case
- SMCG
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,490 in stock
#C3036247
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.40 | ₹222.00 |
| 50+ | ₹35.42 | ₹1,771.00 |
| 150+ | ₹31.57 | ₹4,735.50 |
| 500+ | ₹26.78 | ₹13,390.00 |
| 3,000+ | ₹22.68 | ₹68,040.00 |
| 6,000+ | ₹21.39 | ₹1,28,340.00 |
5 × ₹44.40
₹222.00
excl. GST
₹261.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMDJ64A
₹222.00 for 5 + GST
Specifications
- Clamping Voltage
- 103V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 29.13A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 3kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 78.6V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 64V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.39 g
