VISHAYDatasheet (PDF)

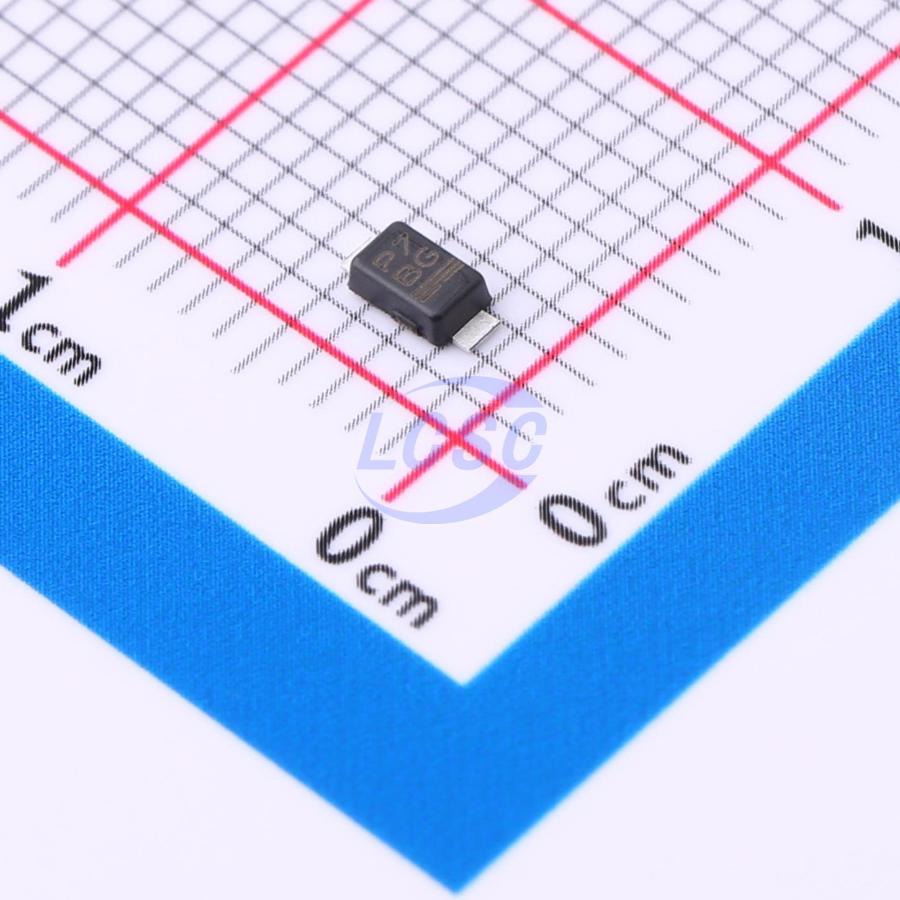

SMF13A-E3-08
21.5VC Clamp 9.3A@10/1000us Ipp ESD DIODE SMF(DO-219AB)
SMF(DO-219AB)ROHS3 CompliantActive
ESD DIODE 13VWM 21.5VC SMF(DO-219AB)
- Manufacturer
- VISHAY
- Manufacturer part #
- SMF13A-E3-08
- Store part #
- C1973117
- Package / case
- SMF(DO-219AB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C1973117
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹69.60 | ₹69.60 |
| 10+ | ₹55.43 | ₹554.30 |
| 30+ | ₹49.19 | ₹1,475.70 |
| 100+ | ₹41.69 | ₹4,169.00 |
| 500+ | ₹38.35 | ₹19,175.00 |
| 1,000+ | ₹36.26 | ₹36,260.00 |
1 × ₹69.60
₹69.60
excl. GST
₹82.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMF13A-E3-08
₹69.60 for 1 + GST
Specifications
- Clamping Voltage
- 21.5V
- Operating Temperature
- -65℃~+175℃
- Peak Pulse Current (Ipp)
- 9.3A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 200W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 16V
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 13V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.069 g
Overview
Key features
- 200 W peak pulse power capability with a Available 10/1000 μs waveform, repetition rate (duty cycle): 0.01 %
- Low profile package
- Wave and reflow solderable e3
- ESD immunity acc. IEC 61000 - 4 - 2 RoHS ± 30 kV contact discharge, ± 30 kV air discharge
- ESD capability according to AEC - Q101: Available human body model: class H3B: > 8 kV
- Low incremental surge resistance, excellent clamping capability
- “Low Noise” technology - very fast response time
- AEC - Q101 qualified available
- Compatible to SOD - 123W package case outline or SOD - 123F and SOD - 123FL
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMF13A#C2857274JSMSEMI · SOD-123FL | JSMSEMI | SOD-123FL | 10,400 | ₹2.18 · 10,400 in stock | View |
 | SMF13A#C41376087R+O · SOD-123FL | R+O | SOD-123FL | 26,540 | ₹3.80 · 26,540 in stock | View |
 | TPSMF13A#C42440531TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 1,140 | ₹3.69 · 1,140 in stock | View |
 | SMF13A#C5353352FOSAN · SOD-123FL | FOSAN | SOD-123FL | 4,680 | ₹2.70 · 4,680 in stock | View |
 | SMF13A#C726902TWGMC · SOD-123FL | TWGMC | SOD-123FL | 1,400 | ₹3.19 · 1,400 in stock | View |
