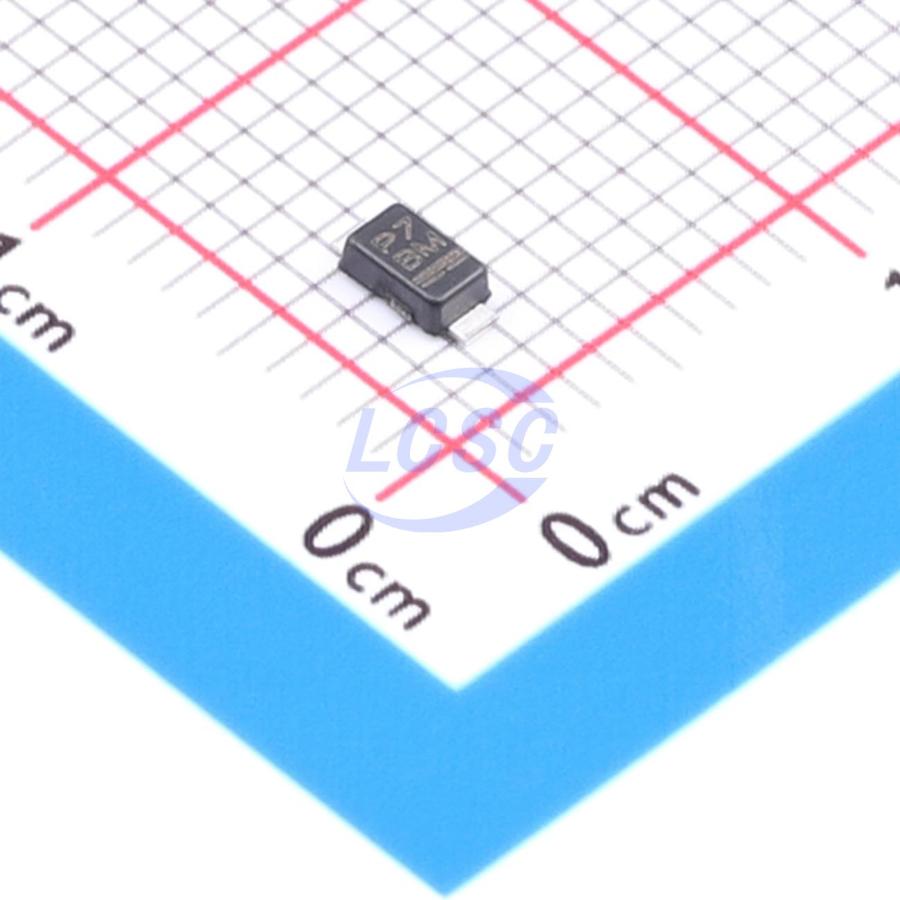

SMF15A-E3-08
24.4VC Clamp 8.2A@10/1000us Ipp ESD DIODE SMF
SMFROHS3 CompliantActive
ESD DIODE 15VWM 24.4VC SMF
- Manufacturer
- VISHAY
- Manufacturer part #
- SMF15A-E3-08
- Store part #
- C2979793
- Package / case
- SMF
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35 in stock
#C2979793
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.84 | ₹104.20 |
| 50+ | ₹20.39 | ₹1,019.50 |
| 150+ | ₹20.08 | ₹3,012.00 |
| 500+ | ₹19.78 | ₹9,890.00 |
5 × ₹20.84
₹104.20
excl. GST
₹122.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMF15A-E3-08
₹104.20 for 5 + GST
Specifications
- Clamping Voltage
- 24.4V
- Peak Pulse Current (Ipp)
- 8.2A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 200W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 18.5V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.025 g
Overview
Key features
- 200 W peak pulse power capability with a 10/1000 us waveform, repetition rate (duty cycle): 0.01%
- Low profile package
- Wave and reflow solderable
- ESD immunity acc. IEC 61000-4-2 ± 30kV contact discharge ± 30kV air discharge
- ESD capability according to AEC-Q101: human body model: class H3B1 > 8kV
- Low incremental surge resistance, excellent clamping capability
- "Low Noise" technology - very fast response time
- AEC-Q101 qualified available
- Compatible to SOD-123w package case outline or SOD-123F and SOD-123FL
