VISHAYDatasheet (PDF)

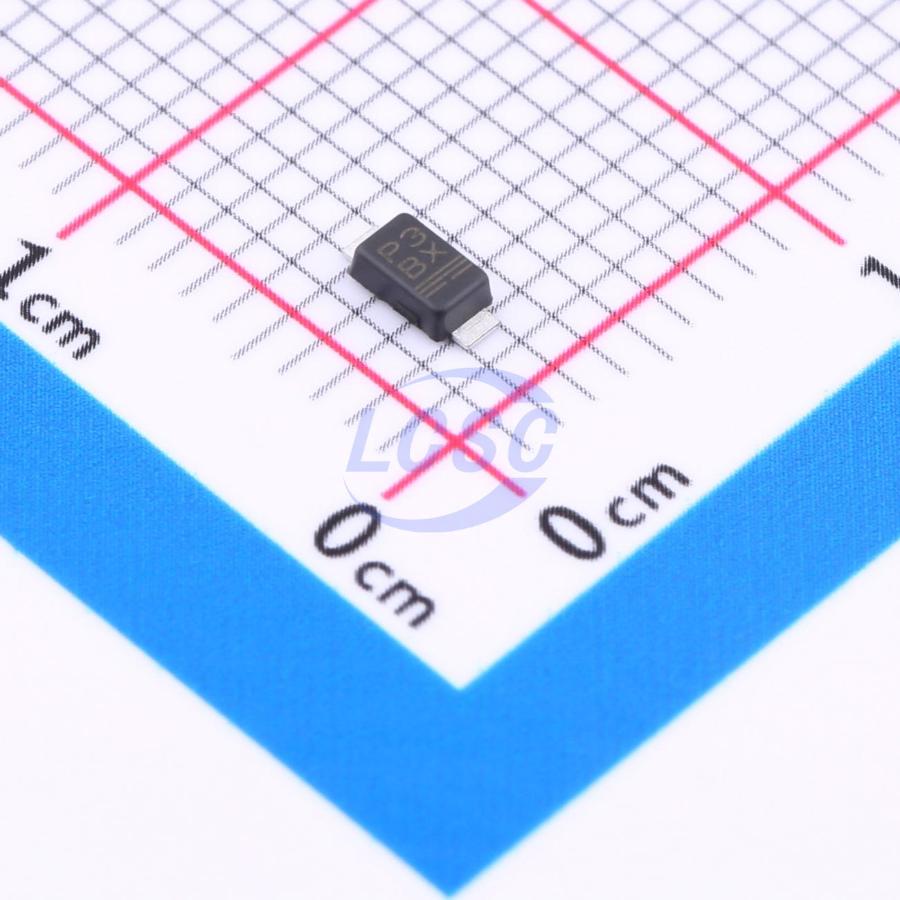

SMF22A-HE3-08
35.5VC Clamp 5.6A Ipp ESD DIODE SMF(DO-219AB)
SMF(DO-219AB)ROHS3 CompliantActive
ESD DIODE 22VWM 35.5VC SMF(DO-219AB)
- Manufacturer
- VISHAY
- Manufacturer part #
- SMF22A-HE3-08
- Store part #
- C1973936
- Package / case
- SMF(DO-219AB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,555 in stock
#C1973936
Stock & price checked 43 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.89 | ₹114.45 |
| 50+ | ₹19.73 | ₹986.50 |
| 150+ | ₹18.38 | ₹2,757.00 |
| 500+ | ₹16.68 | ₹8,340.00 |
| 3,000+ | ₹15.94 | ₹47,820.00 |
| 6,000+ | ₹15.48 | ₹92,880.00 |
5 × ₹22.89
₹114.45
excl. GST
₹135.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMF22A-HE3-08
₹114.45 for 5 + GST
Specifications
- Clamping Voltage
- 35.5V
- Operating Temperature
- -65℃~+175℃
- Peak Pulse Current (Ipp)
- 5.6A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 200W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 27V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 22V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
