TECH PUBLICDatasheet (PDF)

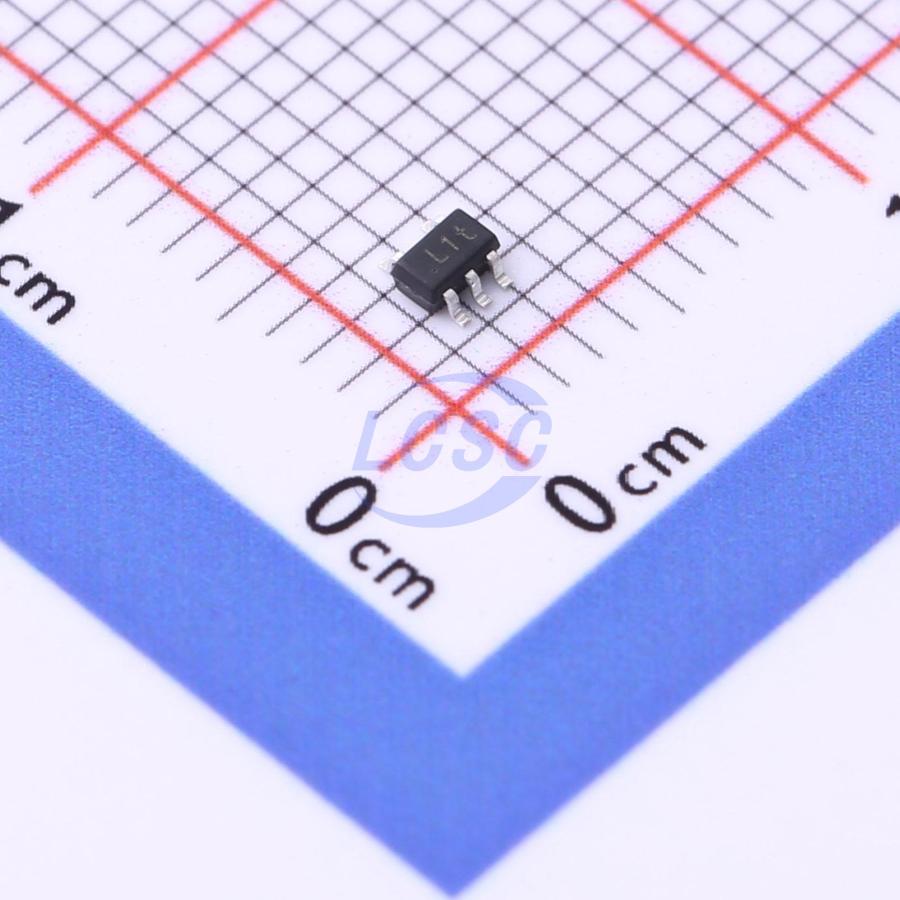

SMF3.3.TCT
nan
SC-70-5RoHSActive
3.3VWM 14VC SC-70-5
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SMF3.3.TCT
- Store part #
- C4355034
- Package / case
- SC-70-5
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,055 in stock
#C4355034
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.97 | ₹59.85 |
| 50+ | ₹9.51 | ₹475.50 |
| 150+ | ₹8.27 | ₹1,240.50 |
| 500+ | ₹7.36 | ₹3,680.00 |
| 3,000+ | ₹6.40 | ₹19,200.00 |
| 6,000+ | ₹6.03 | ₹36,180.00 |
5 × ₹11.97
₹59.85
excl. GST
₹70.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMF3.3.TCT
₹59.85 for 5 + GST
Specifications
- Clamping Voltage
- 11V;14V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Power Dissipation (Ppp)
- 80W@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 4.2V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
Applications
- USB 2.0 and USB 3.0 Ports
- USB OTG
- Digital video interface (DVI)
- Monitor and Flat Panel Displays
- PCI Express and Serial SATA Ports
- Gigabit Ethernet
- IEEE 1394 firewire ports
- Consumer products (STB, DVD, DSC, DVC...)
Key features
- Uitra lowleakage: nA level
- Low operating voltage: 3.3V
- Low clamping voltage
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±20 kV Contact discharge: ±15 kV
- IEC 61000 - 4 - 5 (Lightning) 4A (8/20 μs)
- IEC 61000 - 4 - 4 (EFT) 40A (5/50 ns)
- ROHS Compliant
